Description
Description
|
TECHNICAL DATA |
|
|
Product Name |

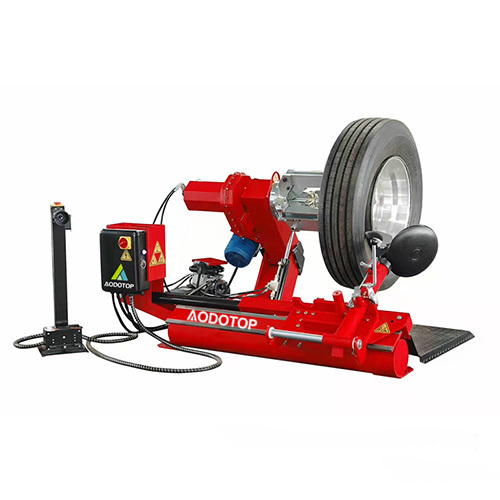

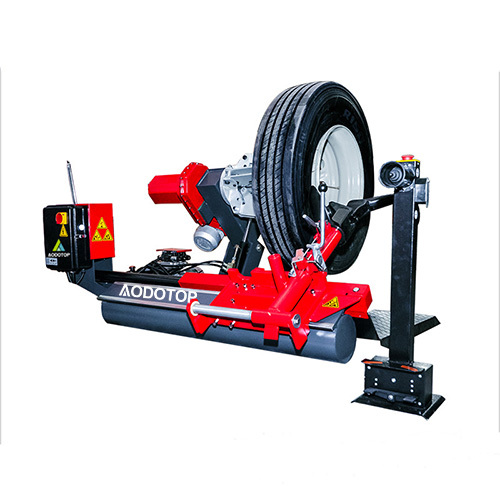

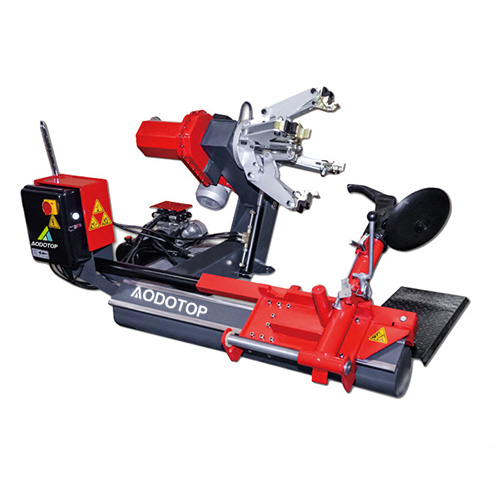

Truck tire changer |
|
Product Model |
AD-T568 |
|
Rim Diameter |
14''-42'' |
|
Max.Wheel Weight |
1600 kg |
|
Max.Wheel Width |
1050 mm |
|
Max.Wheel Diameter |
2300 mm |
|
Hydraulic Pump Motor |
2.2kw 380v-3ph（220v optional） |
|
Gearbox Motor |
2.2kw 380v-3ph（220v optional） |
|
Bead Breaker Force |
3300 kg |
|
Max. Torque |
6457Nm |
|
Operating Control Voltage |
24 v |
|
Machine Weight Approx |
758 kg |
|
Overall Dimensions Approx |
2500*2000 mm |
|
Power |
220/400v 50/60HZ 1P/3P Optional |
