Technical Specification
|
Model Number |
AD-ST800 |
AD-ST1000 |
AD-ST1200 |
AD-ST1500 |
AD-ST1600 |
AD-ST1800 |
|
Input Voltage |
1PH220V |
1PH220V |
1PH220V |
1PH220V |
1PH220V |
1PH220V |
|
Frequency |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
50/60HZ |
|
Input power |
3/25KVA |
3/25KVA |
3/25KVA |
3.3/30KVA |
4/35KVA |
4.5/40KVA |
|
Starting Voltage |
12/24V |
12/24V |
12/24V |
12/24V |
12/24V |
12/24V |
|
Starting Current |
800A |
1000A |
1200A |
1500A |
1600A |
1800A |
|
Charging Voltage |
10-15/20-30V |
10-15/20-30V |
10-15/20-30V |
10-15/20-30V |
10-15/20-30V |
10-15/20-30V |
|
Charging Current |
50A |
50A |
50A |
100A |
100A |
100A |
|
Dimension |
330*320*780mm |
330*320*780mm |
330*320*780mm |
350*340*820mm |
350*340*820mm |
350*340*820mm |
|
Weight |
38KG |
38KG |
38KG |
42KG |
42KG |
42KG |
Features
1,Battery charger and starters functions;
2,For charging lead-acid batteries with 12/24V, and starting all kinds of cars, vans light trucks ,tractors and trucks;

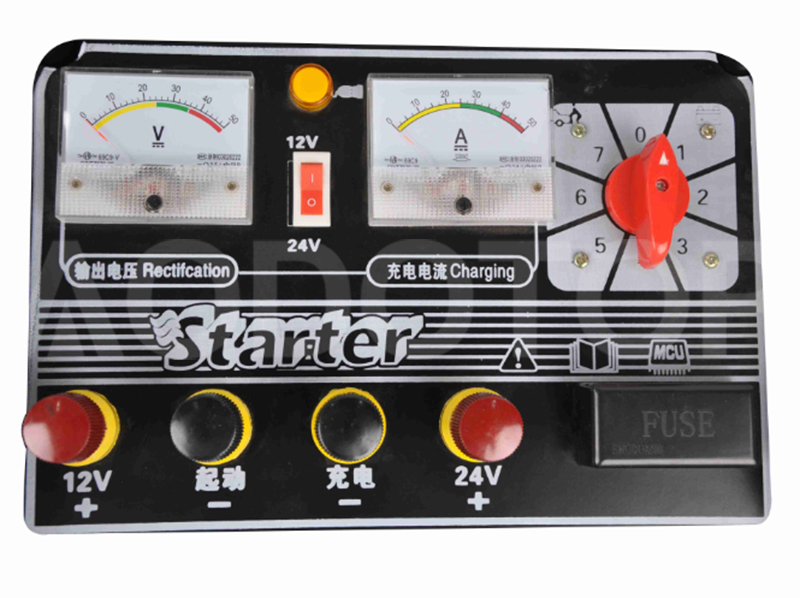

3,Equipped with voltmeter & ammeter;
4,LED display for the voltage and current ;
5, Protected against shorts and overloads;

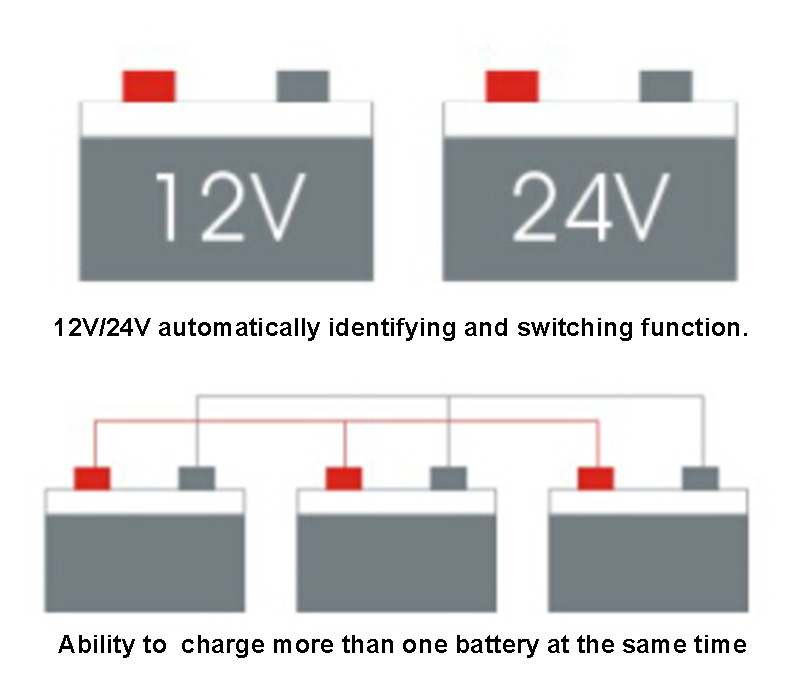

6,Charging more than one battery at a time.
Product details
