Technical specification
|
Input Voltage |
2PH380V/220V |
|
Frequency |
50HZ/60HZ |
|
Rated Power |
6.5KVA |
|
Floating voltage |
16.5V |
|
Welding current |
200-11000A |
|
Max Output power |
22KVA |
|
Duty Cycle |
15% |
|
Automatic Working Time |
0.1--2.5S |
|
Outline Dimensions |
L*W*H 420*600*1200mm |
|
Weight |
78kg |
Features
1. Automatic mains voltage monitoring.
2.Overheat protection.
3.Designed for dent pulling of different kinds of car steels such as conventional steel, stainless steel, etc.
3.double-sided welding.

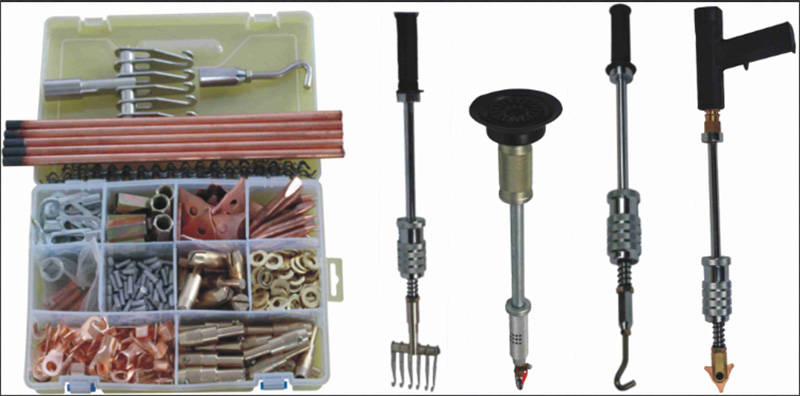

4.Various welding procedures are available such as shrinking, washer welding, dent pulling spot welding, flattening, waveform wire welding, stud welding, OT washer welding, triangle washer welding etc.

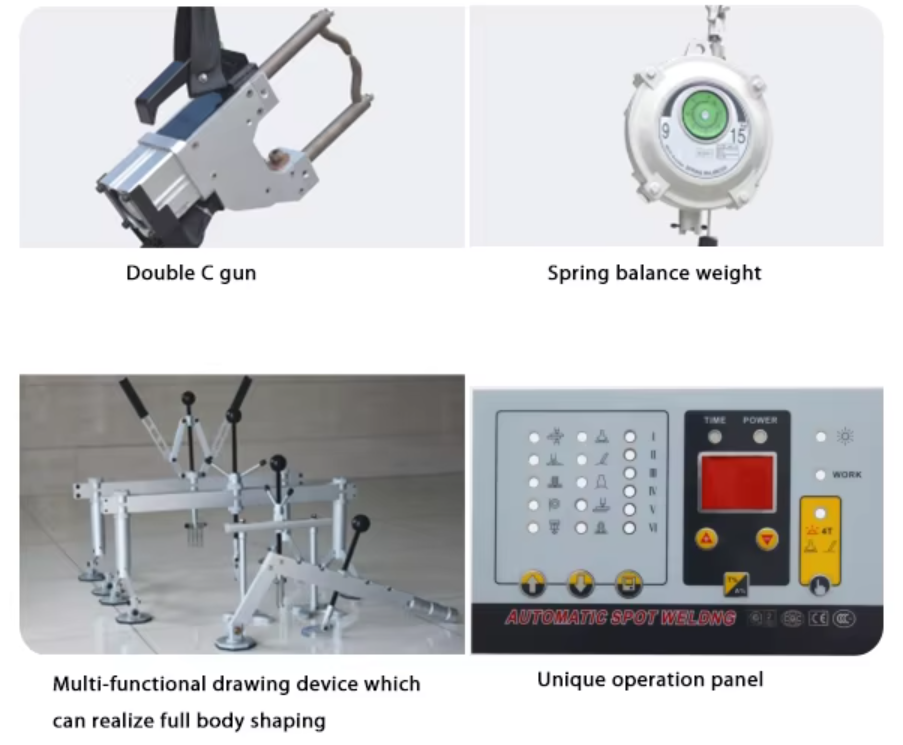

5.Uniquely designed gun cable support arm allows flexible movement with 360 rotation.
6.60 memory functions.
7.Impulse type working style, nice weld joint, 4T control ,No need to press all the time.
8.Welding time can be count down.
Product details
Production package
