Product Description

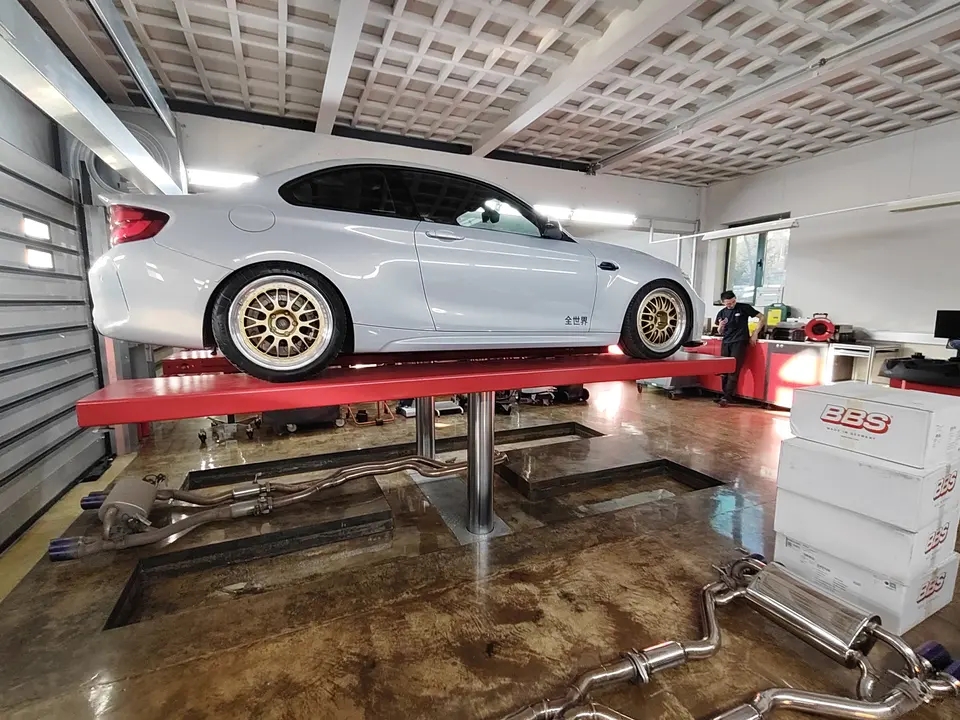

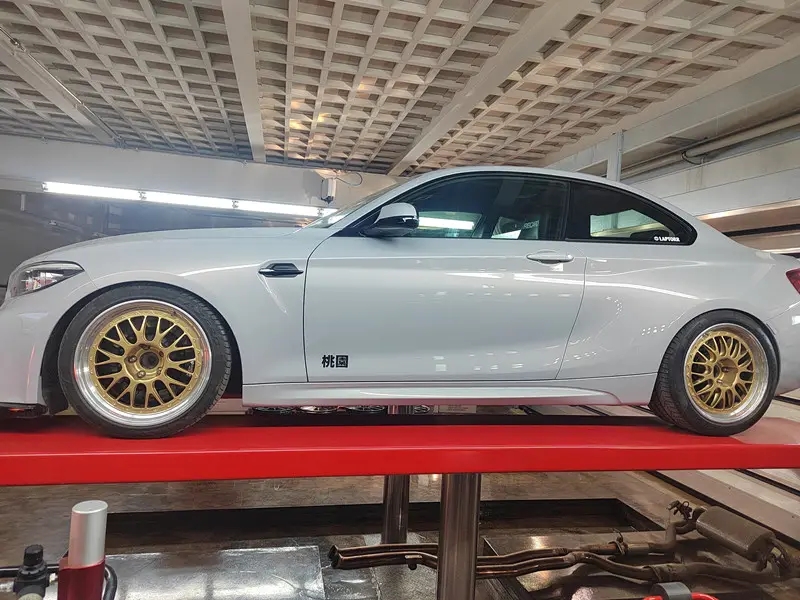

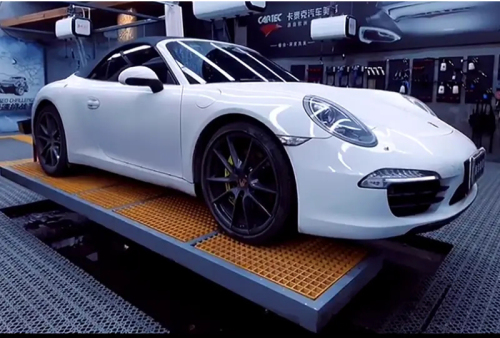

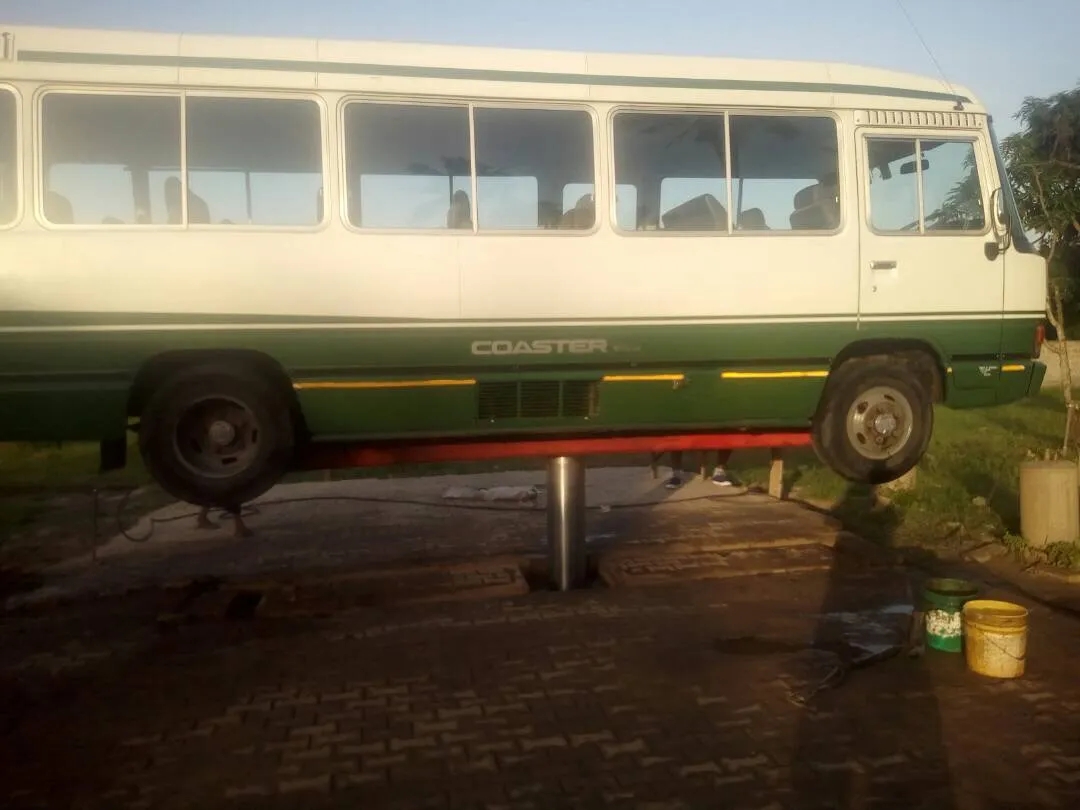

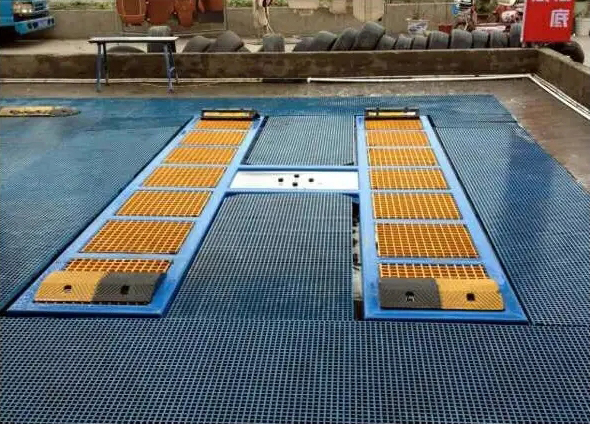

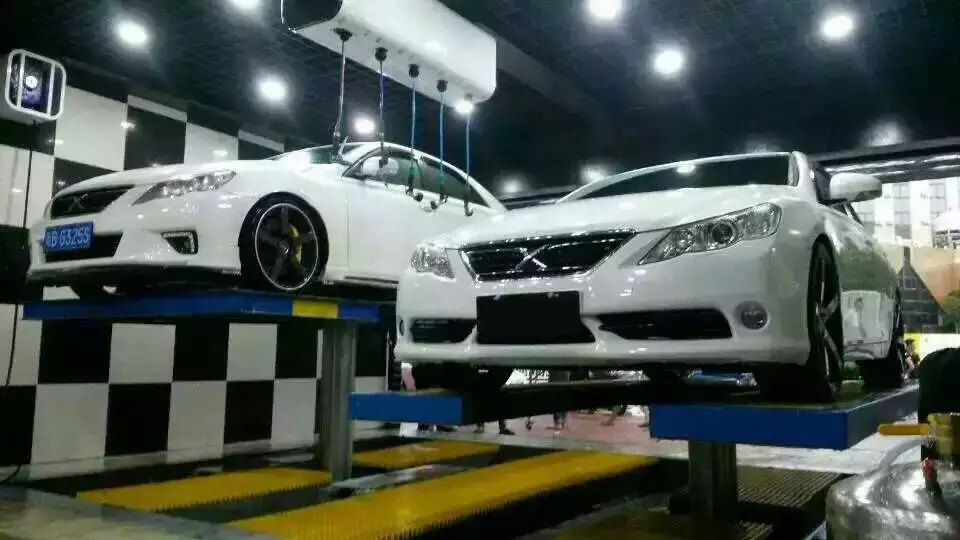

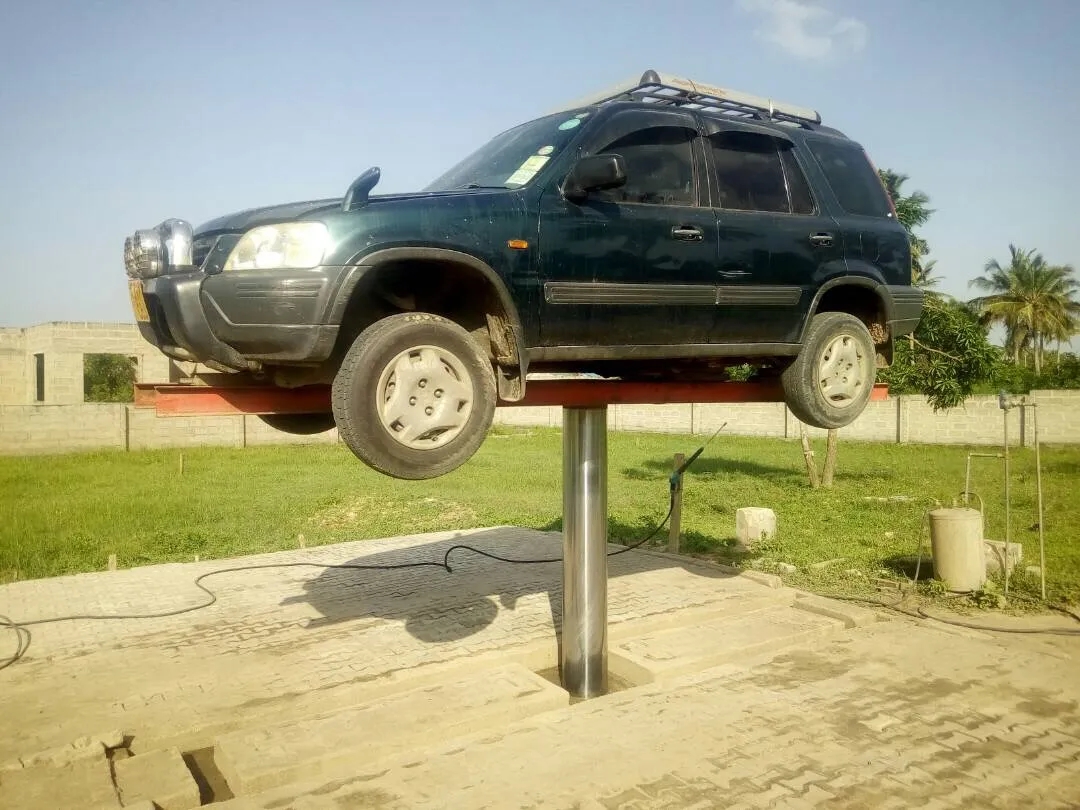

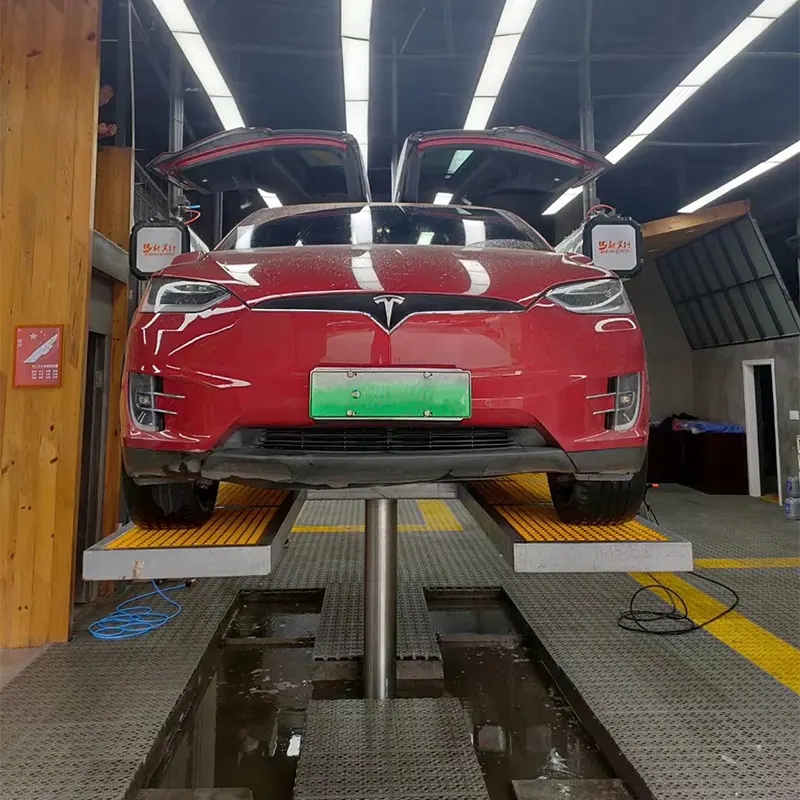

Cases

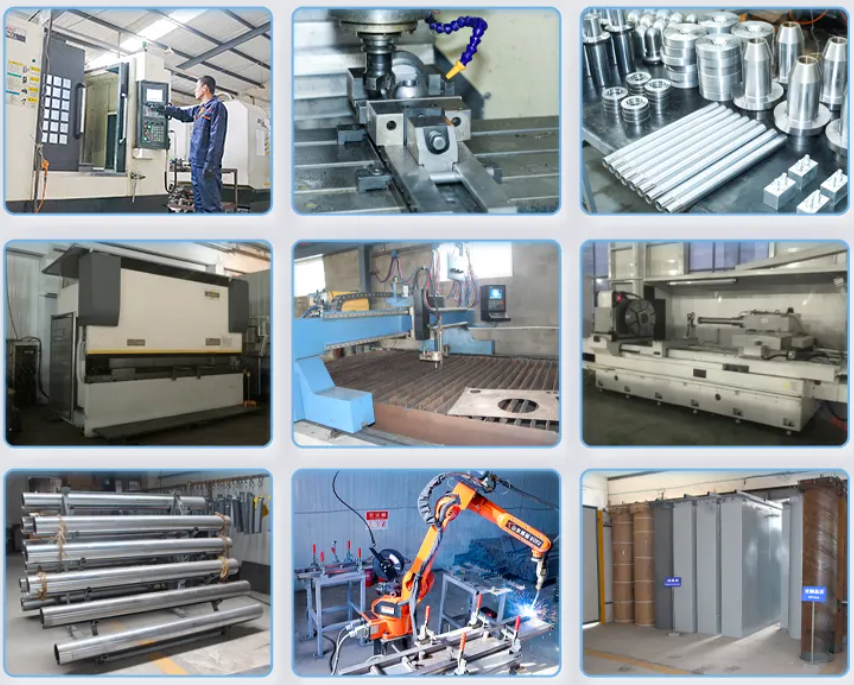

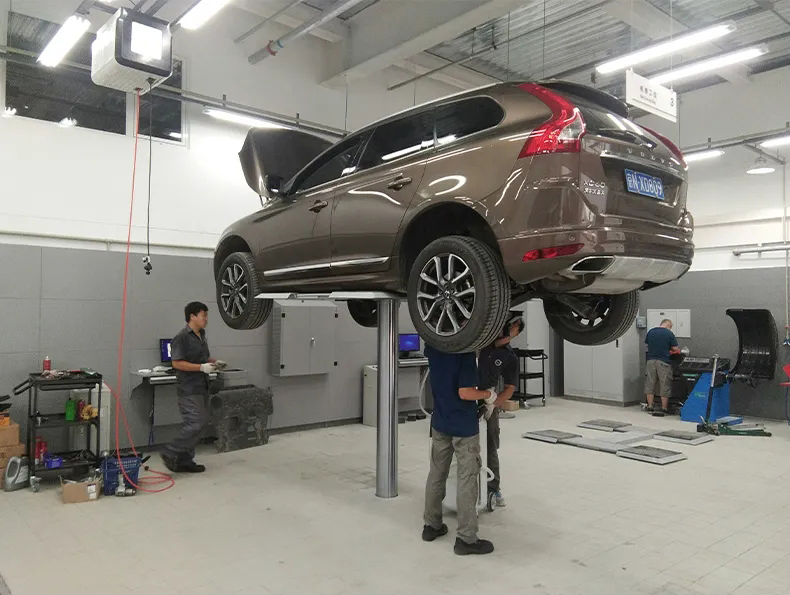

Workshop
|
Lifting capacity |
3500kg |
|
Load sharing |
max. 6:4 in or against drive-on direction |
|
Max. Lifting height |
1800mm |
|
Raising/Lowering Time |
40/60sec |
|
Supply voltage |
AC220/380V/50 Hz；AC230/400V/50 Hz |
|
Power |
2.2 kw |
|
The pressure of the air source |
0.6-0.8MPa |
|
Diameter of lifting column |
195mm |
|
Lifting of thick pilaster |
14mm |
|
Main unit diameter |
¢475mm |
|
Main unit height |
2514mm |
|
Sound level (measured at control console) |
≤75 dBA |
|
Capacity of oil tank |
8L |
