Technical data
|
General specification |
Power form |
Semi-electric |
|
Operator type |
Hand |
|
|
Rated capacity |
1500/2000kg |
|
|
load center distance |
500mm |
|
|
Performance Data |
Lifting speed ,unladen/laden |
105/55 |
|
Lowering speed,unladen/laden |
stepless speed |
|
|

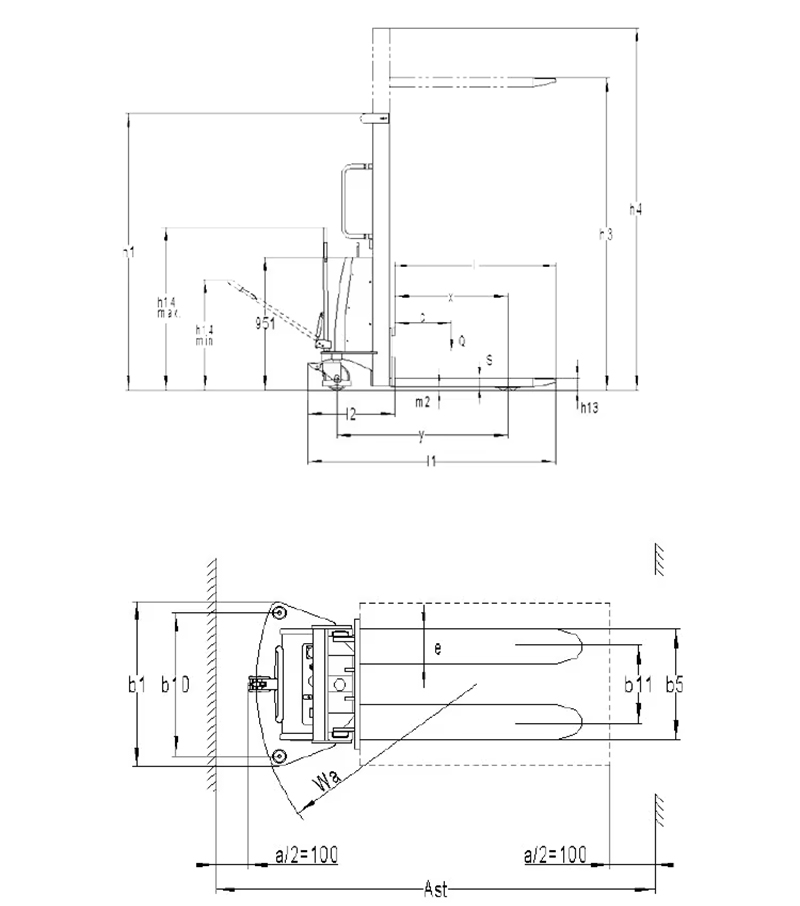

Dimensions |
Overall length/width |
1822/771mm |
|
wheelbase |
1290mm |
|
|
Fork size(L*W*thickness) |
1150*165*55mm |
|
|
Distance between fork arms |
550/685mm |
|
|
Ground clearance |
28mm |
|
|
Lowered height |
88mm |
|
|
Turning radius |
1575mm |
|
|
Minimum aisle width |
2460mm |
|
|
Tires |
Loading wheels |
80*60mm |
|
Rear wheels |
180*50mm |
|
|
Motors |
Lift motor ratin/DC |
1.6kw |
|
Battery |
Voltage/nominal capacity |
12/120 |

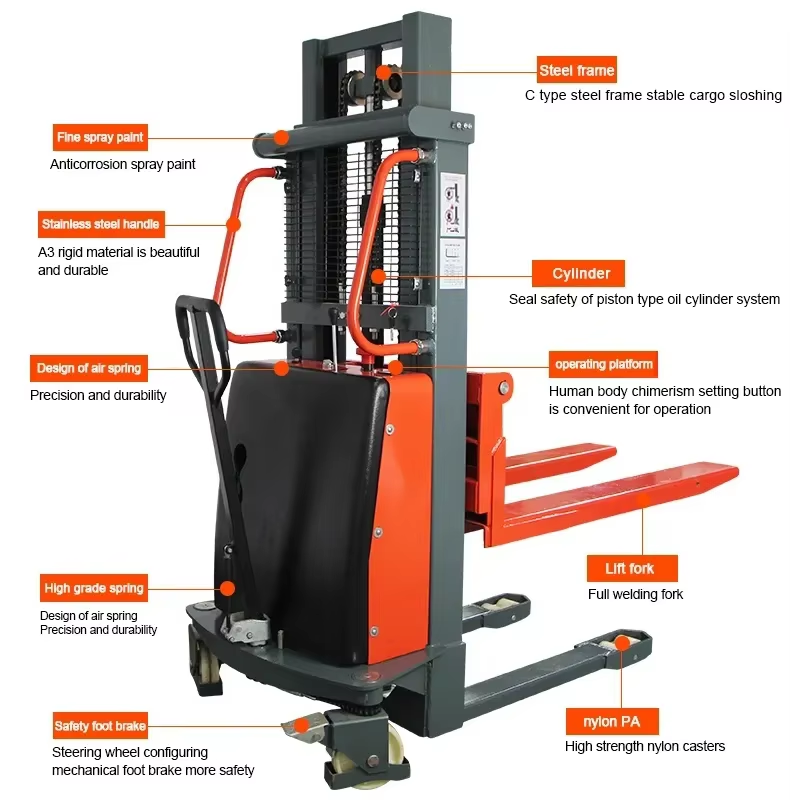

Features
High strength manganese steel frame fork, durable, safe and reliable.
High sealing integral cylinder with imported sealing ring,improve sealing performance,eliminate oil leakage, reduce maintenance costs.
Large capacity brand maintenance-free battery, long battery life, long service life, simple maintenance.
Pure nylon wheel and equipped with high sealing bearings, steering flexibility
The cargo fork is adjustable, and the forging fork is optional.

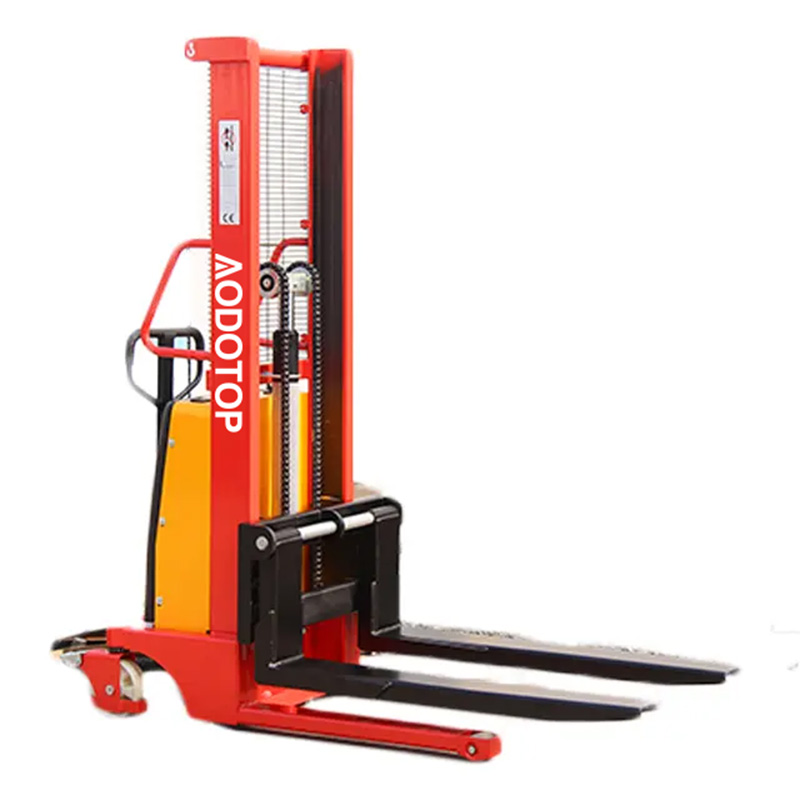

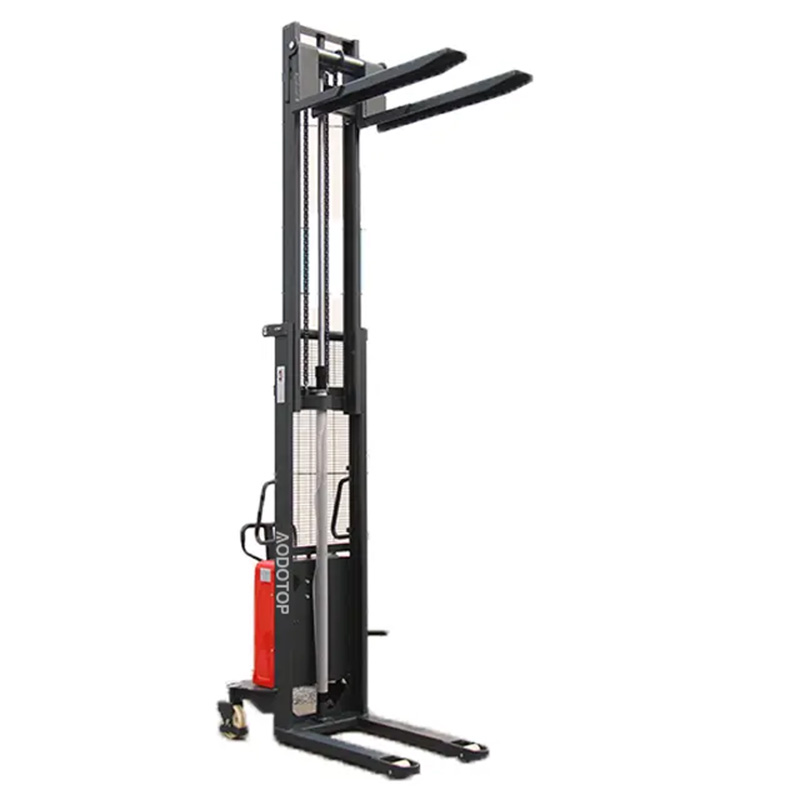

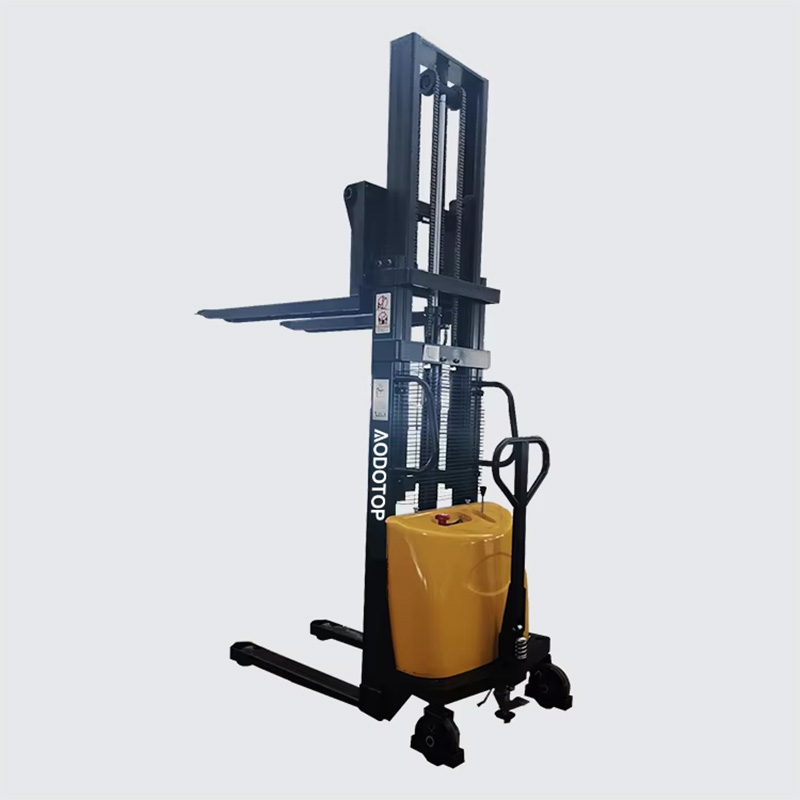

Product details

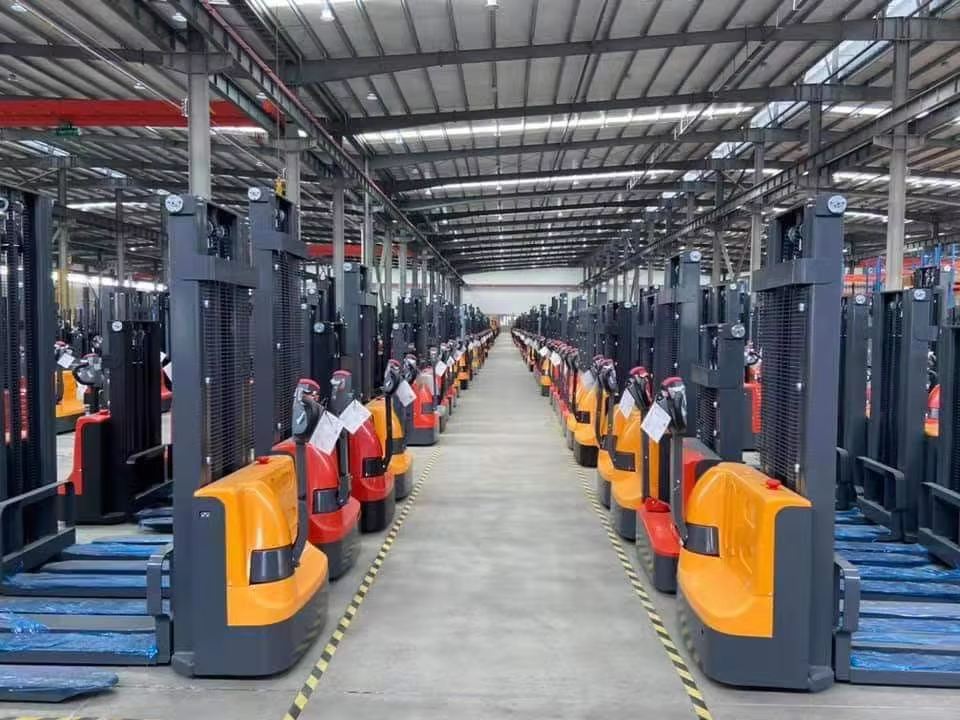

Factory
