Description
Description
Product description
Technical data
Feature
Technical data
|
Voltage |
110V/220V/380V |
|
Rim Clamping From Outside |
12-22" |
|
Rim Clamping From Inside |
12-24" |
|
Rim Diameter |
1140 mm |
|
Wheel Width |
4-13" |
|
Motor Power |
1.1/0.75 KW |
|
Working Rotation Speed |
6.8 rpm |
|
Working Air Pressure |
8-10 bar |
|
Gross/Net Weight |
420kg/340kg |
|
Packing Size |
1230x1000x1800 mm |
1. Enhanced S41 mounting bar with better strength, it is not easy to deform during operation
2. Clamping jaw is equipped with the protective sleeve to provide more comprehensiveprotection tires and rims

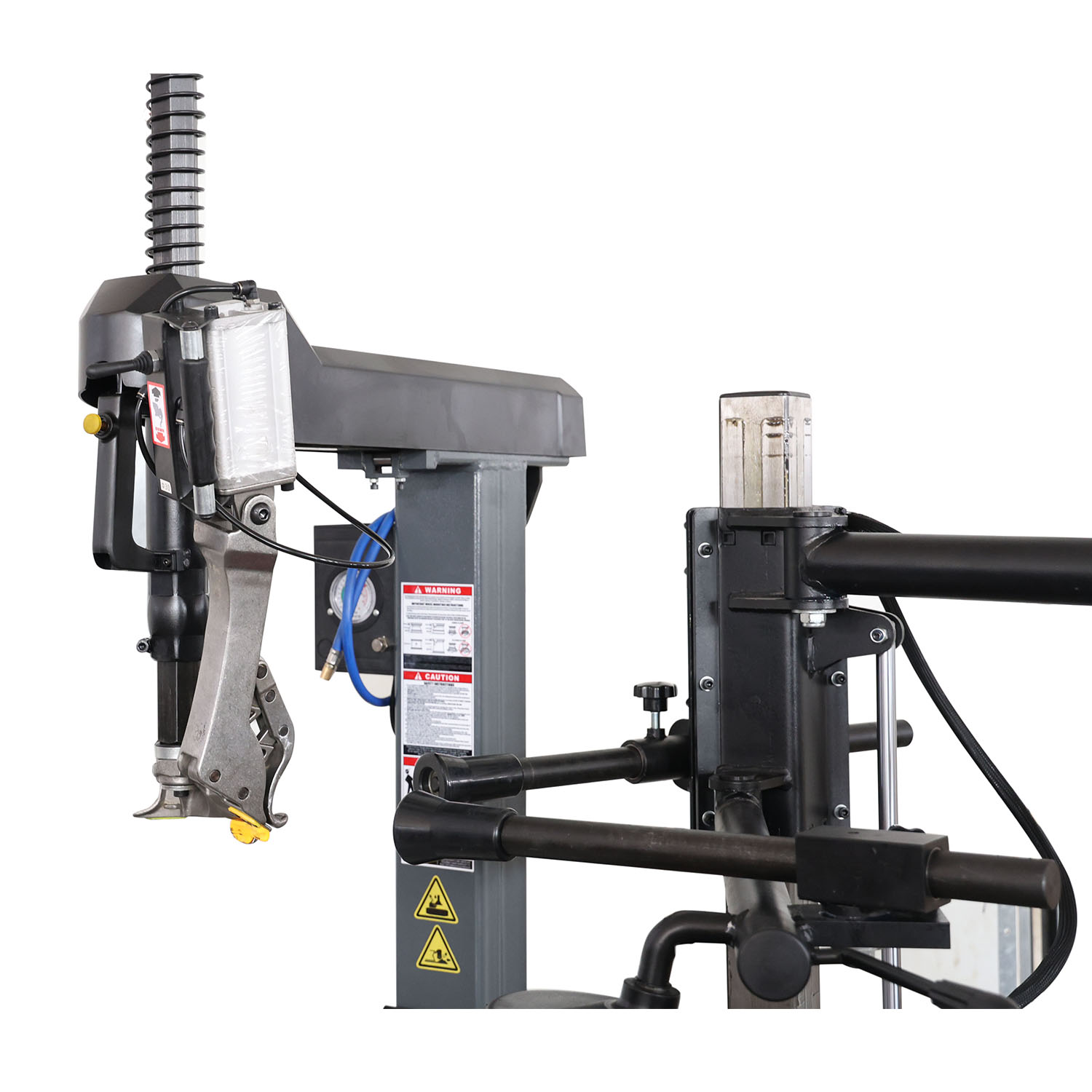

3. Equipped with auto helper arm which makes mounting and demounting tire more quickerand easier
4. The clamping jaw is made of precision steel cast which is firm and durable
5.Universal bead breaker, more suitable for operation
6.Vertical inflation-tool box with elegant appearance
7.Body design dignified, thick sheet material, strong rigidity
8. lron stamping pedal, durable for life (optional aluminum pedal)
9.Change the clamping range by adjusting the position of the slider
Product details
