Application |
Cars and light trucks |
|
Power Supply |
220V, 50/60HZ |
|
Nitrogen Purity |
95-99% |
|
Intake Pressure |
9-10 Bar |
|
Air Compressor Requirements |
5.5-7.5KW |
|
Nitrogen Outlet Pressure |
1-6Bar |
|
Output |
70-90L/min |
|
N2 Tank Capacity |
100L |
|
Standard Accessories |
Automatic hose reel |
|
Function |
Tire Pressure Monitor, Nitrogen Tire Inflator |
|
Power Supply |
AC220V 50Hz |
|
Dimension |
370*530*1180 |
|
Input air Pressure |
0.8-1.0Mpa |
|
Output gas Pressure |
0.6-0.8Mpa |
|
Nitrogen Purity |
95-99.5% |
|
Nitrogen Output |
3000L/H |
|
Storage Capacity |
Built-in 60L |
|
Vacuum Type |
External |
|
Vehicles Applicable |
Passenger cars, medium vehicles |
|
Pressure booster System |
Optional |
|
Power supply |
AC220V/50Hz |
|
Motor power |
60W |
|
Nitrogen purity |
95~99.5% |
|
Inlet pressure/inlet flow |
145~200Psi/10~13.8Bar 600L/min |
|
Nitrogen flow |
283L/min |
|
Gas tank capacity |
120L/31.8gal |
|
Nitrogen output pressure |
≤116psi/8bar |
|
Overcharge pressure range |
0~29psi/0~2.00bar |
|
Nitrogen purification times |
0~6 |
|
Working temperature |
+5℃~+40℃ |
|
Measuring range |
5~116Psi/0.3~8Bar |
|
Accuracy |
±1psi/0.07bar |
|

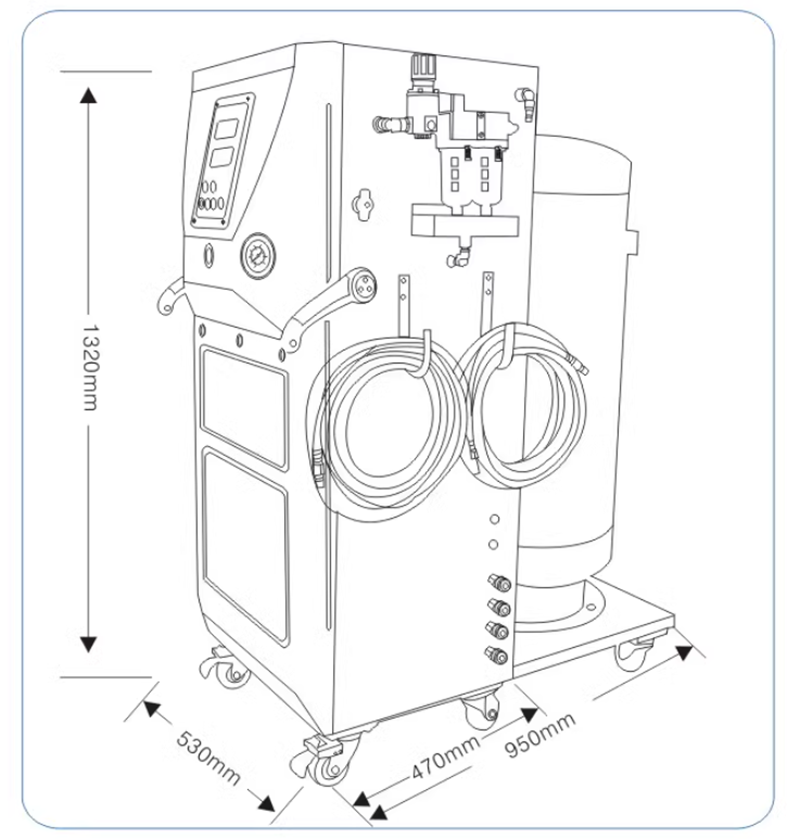

Dimensions |
1320(H)X700(L)X560(W)mm |
|
Net weight |
214 Kg |
|

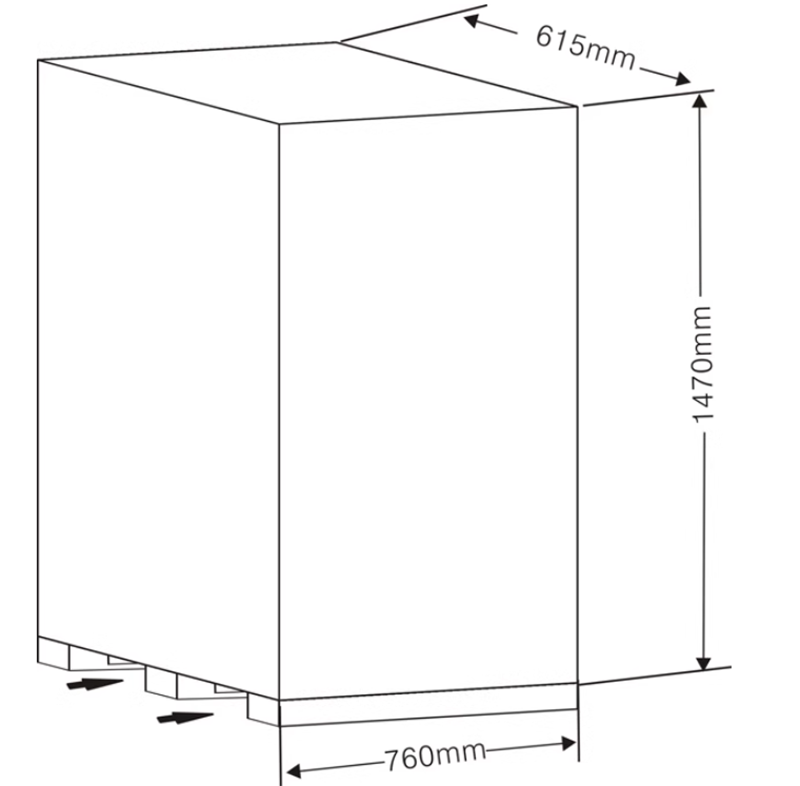

Packing size |
1470(H)X760(L)X615(W)mm |
|
Gross weight |
229 Kg |
Product details
