Product Description
Main Features
|
Voltage |
110V / 220V /380V |
|
Rim Clamping From Outside |
12-22" |
|
Rim Clamping From Inside |
12-24" |
|
Rim Diameter |
1140 mm |
|
Wheel Width |
4-13" |
|
Motor Power |
1.1/0.75 kw |
|
Working Rotation Speed |
6.8 rpm |
|
Working Air Pressure |
8-10 bar |
|
Net Weight / Gross Weight |
205kgs / 245kgs |
|
Packing Size |
1150x920x930 mm |
Main Features
The 24-inch working disc is 630 mm in diameter and 14.5 mm in thickness. Protective sheets are installed under the fixed
claws and the metal joints of the whole machine are installed.
Aluminum pedal control unit to prolong its service life.
Oil-water sprayer is made of aluminum alloy,durable.
Stainless steel working head which is firm and durble.
claws and the metal joints of the whole machine are installed.
Aluminum pedal control unit to prolong its service life.
Oil-water sprayer is made of aluminum alloy,durable.
Stainless steel working head which is firm and durble.
Mechanical locking is more durable and the failure rate is lower. The contact between swing arm and top wire is thicker.
Product Details

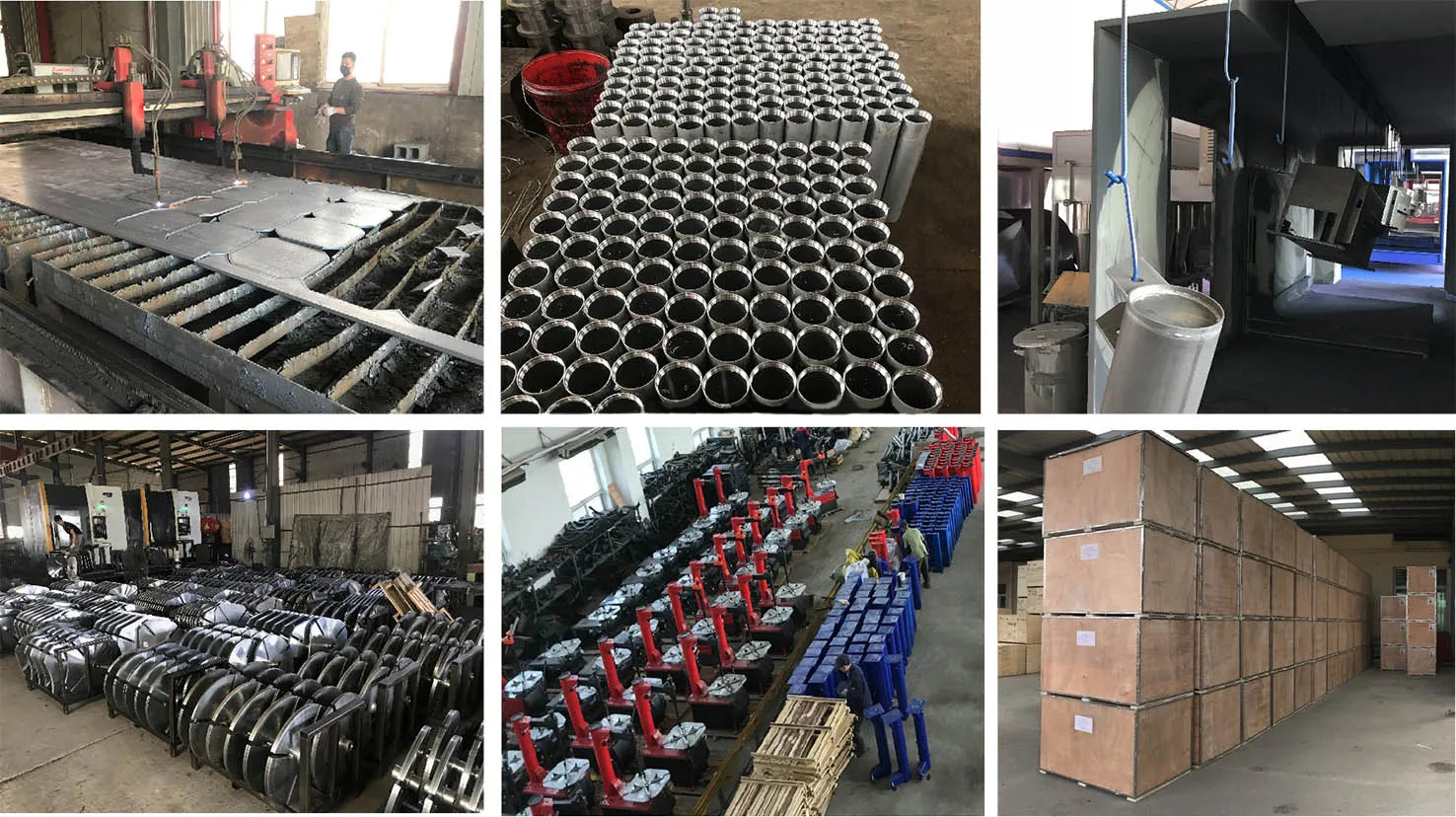

Workshop Show
Product Details
Workshop Show
