Technical data
|
Power supply |
AC220V/50Hz |
|
Applicable models |
motorcycle/car/bus |
|
Motor power |
60W |
|
Nitrogen purity |
95~99.5% |
|
Inlet pressure/inlet flow |
145~200Psi/10~13.8Bar 600L/min |
|
Nitrogen flow |
283L/min |
|
Gas tank capacity |
120L/31.8gal |
|
Nitrogen output pressure |
≤116psi/8bar |
|
Overcharge pressure range |
0~29psi/0~2.00bar |
|
Nitrogen purification times |
0~6 |
|
Working temperature |
-20℃~+70℃ |
|
Measuring range |
5~116Psi/0.3~8Bar |
|
Accuracy |
±1psi/0.07bar |
|

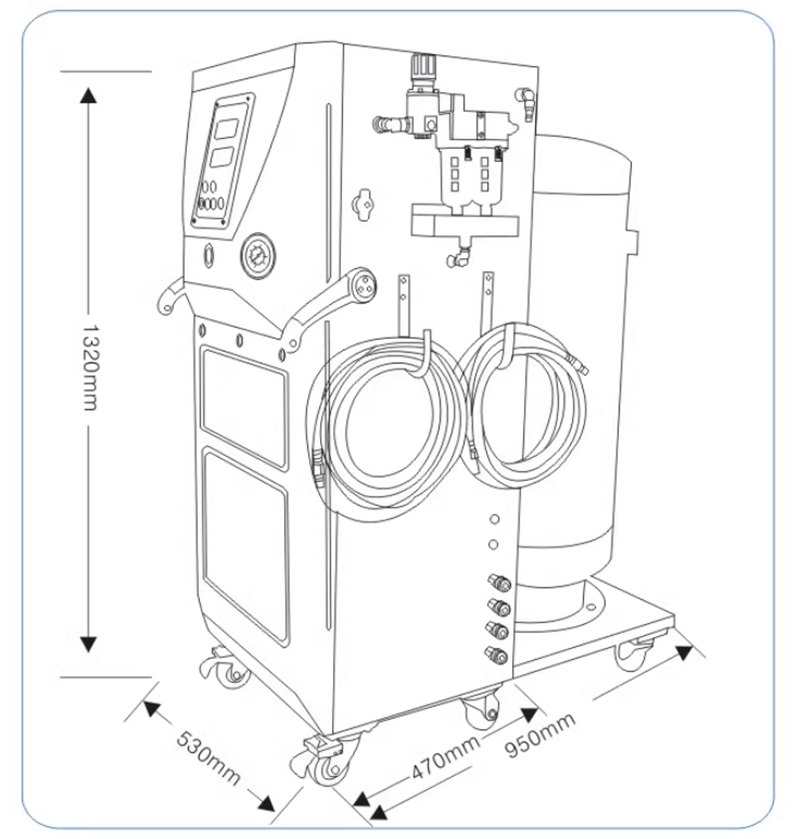

Dimensions |
1320(H)X700(L)X560(W)mm |
|

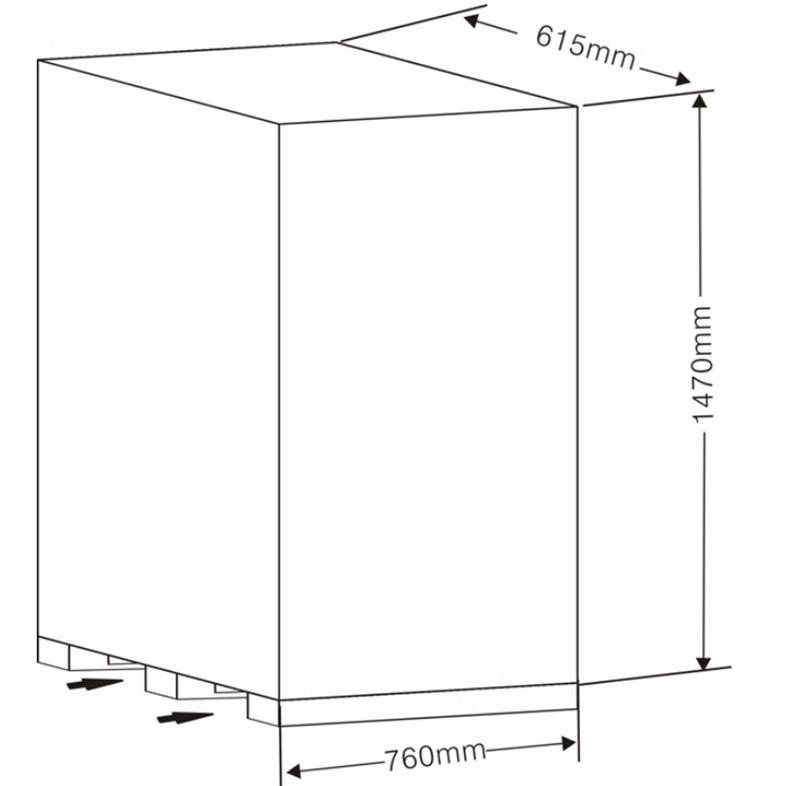

Packing size |
1470(H)X760(L)X615(W)mm |
|
Net/Gross weight |
214 Kg/229 Kg |
Feature
Standard inflation mode.
Adjustable overfill pressure setting.
Adjustable nitrogen purge and inflation times.
Inflate four tires simultaneously.
Automatic device shut-off.
Automatic zero correction.
Two LED display windows for operating mode.
Automatic completion of all set functions.
Error diagnosis tips.
