Technical Specification
|
Input Voltage |
380V 50/60Hz |
|
Max.Rated Input Power |
12.5KVA |
|
Input Current |
2065A |
|
Output Current |
200-4200A |
|
Output Voltage |
1-11.5V |
|
Welding Time |
0-99S |
|
Reg |
Stepless |
|
Dimensions |
550*490*900mm(L*W*H) |
Features
1.The microprocessor control system optimizes the welding parameters.Using advanced digital control technology and user friendly design,all you have to do is select the welding current corresponding to the work piece thickness to achieve the best welding results.
2.High precision time adjustment system.
3.USES the Japan SMT technology.
4.CPU made by new green fiberglass board,make the product service life is longer.
5.Aerospace-nanometer technology embedded smart chip,low-carbon energy and environmental protection.
6.Overheating protection.
7.Spot welding automatic cooling function status.
8.The welding gun testing function evaluates the usage status of the welder more comprehensively.
9.Suitable for dent pulling of different kinds of car steels such as conventional steel,stainless steel,etc.
10.Various of welding procedures are available such as shrinking,washer,direct-pulling, spot welding, flattening, waveform wire,stud welding, OT washer, triangle washer, etc .
11. LCD digital display screen, 10 welding modes digital control system
12.Without press the switch,the computer test your auto body when welding,worker can use less finger,it's friendly design.

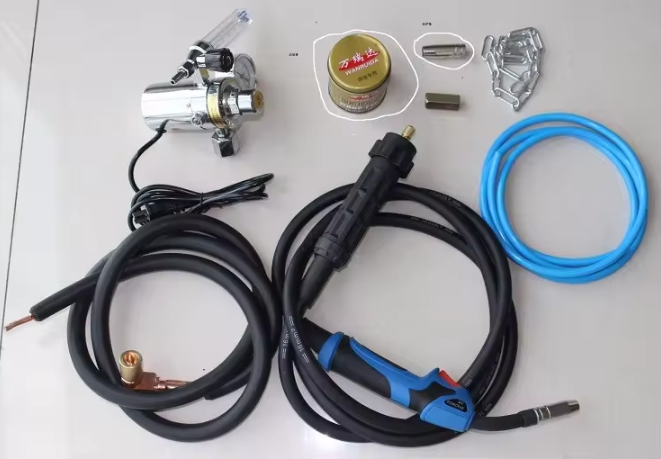

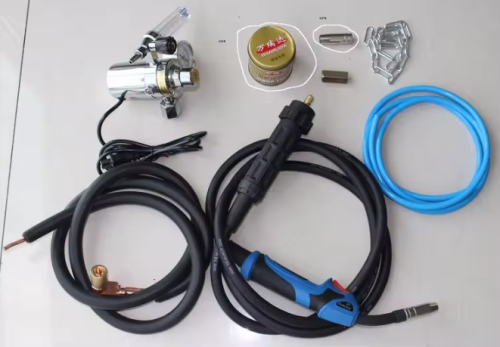

Package
