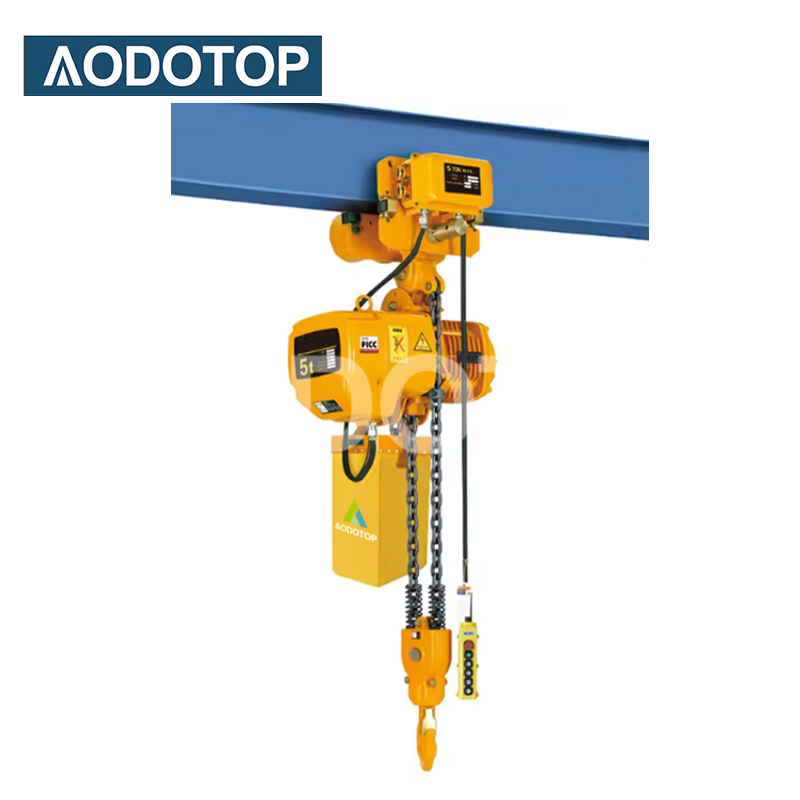

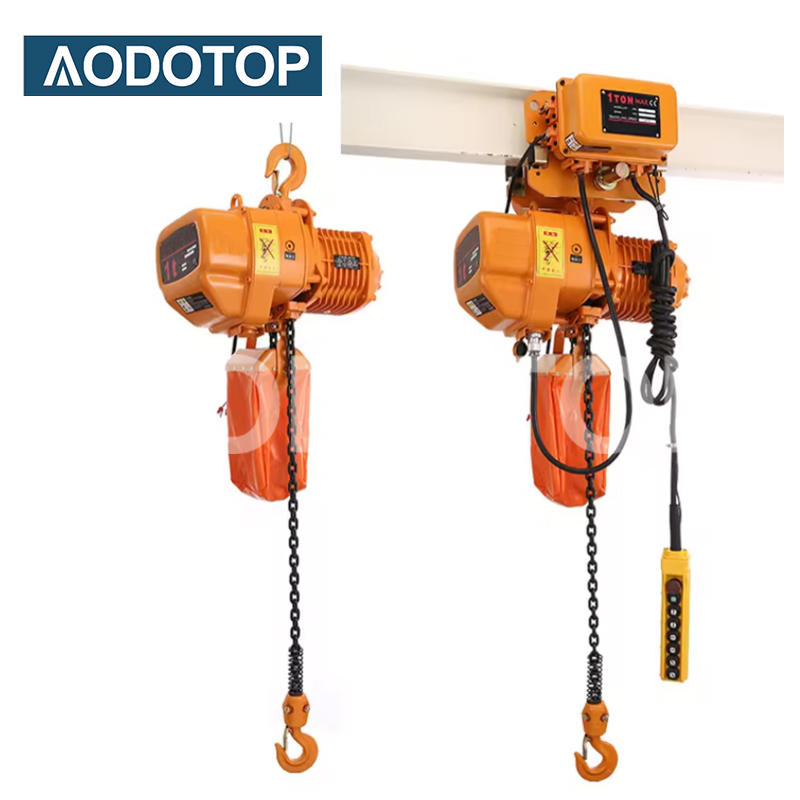

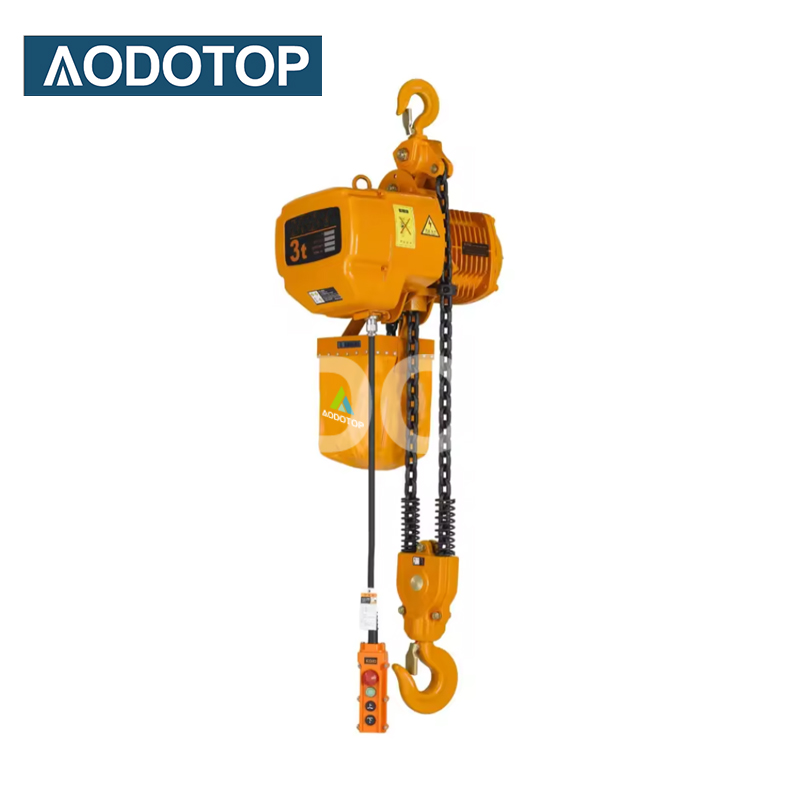

Chain hoist is a light and small lifting equipment. The chain hoist is composed of motor, transmission mechanism and sprocket. All chain hoists are produced in accordance with international standards. The appearance of the body is beautiful, strong and durable. The internal gears are all quenched at high temperature, which increases the wear resistance and toughness of the gears. It adopts the most advanced international technology, fine workmanship, and tight fit between the gears.The weight of the electric chain hoist is generally 0.1 to 60 tons, and the lifting height is 3 to 120 meters.
Technical specification:
|
Application |
Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, Lifting Equipment |
|
Full Load Descending Air Consumption |
0.7-3.6m³/Min |
|
Full Load Lifting Noise |
78dB |
|
Full Load Lifting Air Consumption |
0.7-6.5m³/Min |
|
Lifting Weight |
0.25-50t |
|
Air Pressure |
4bar/6bar |
|
Full Load Descending Noise |
82dB |
|
Capacity |
0.3~60T |
|
Lifting Height |
3/9M |
|
Hoisting Speed |
1.3~8M/Min |
|
Travelling Speed |
13-20M/Min |
Features:
1. With suspension hook, push, geared or electric trolley.
2. Standard lift height 3-9m, operating voltage 220-440V, 50/60Hz, 1-3phase.
3. Low voltage control 24V or 36V is standard.
4. High efficient energy-saving motor, asbestos free brake system.
5. Light weight, compact and solid body case.
6. Top and bottom hooks are fitted with safety latches as standard.

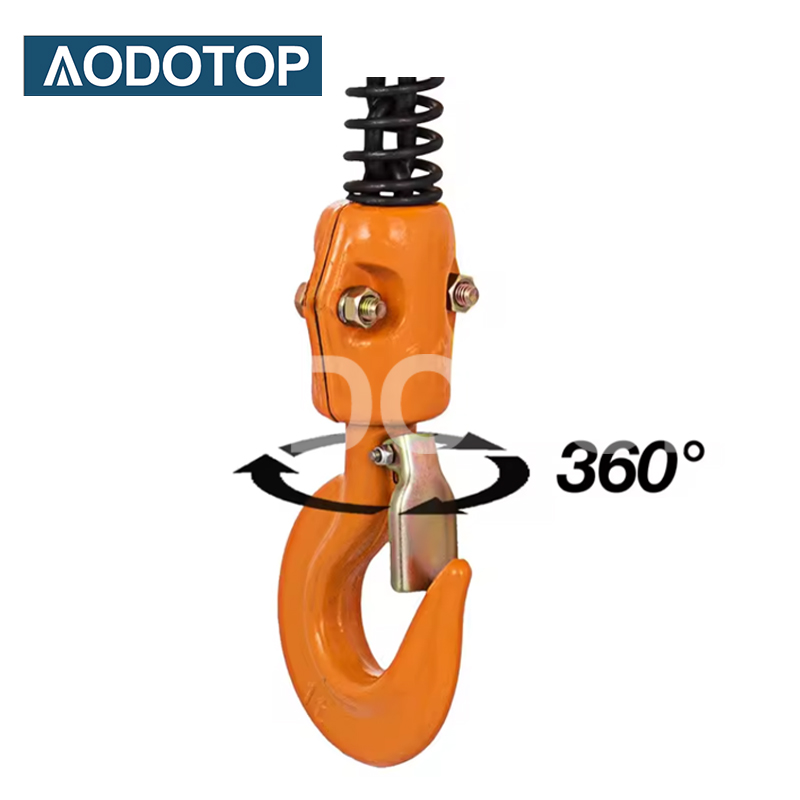

7. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
8. Strong chain bucket.
9. Super strong surface hardened chain.
10. Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
Product details
