Technical data
|
Type |

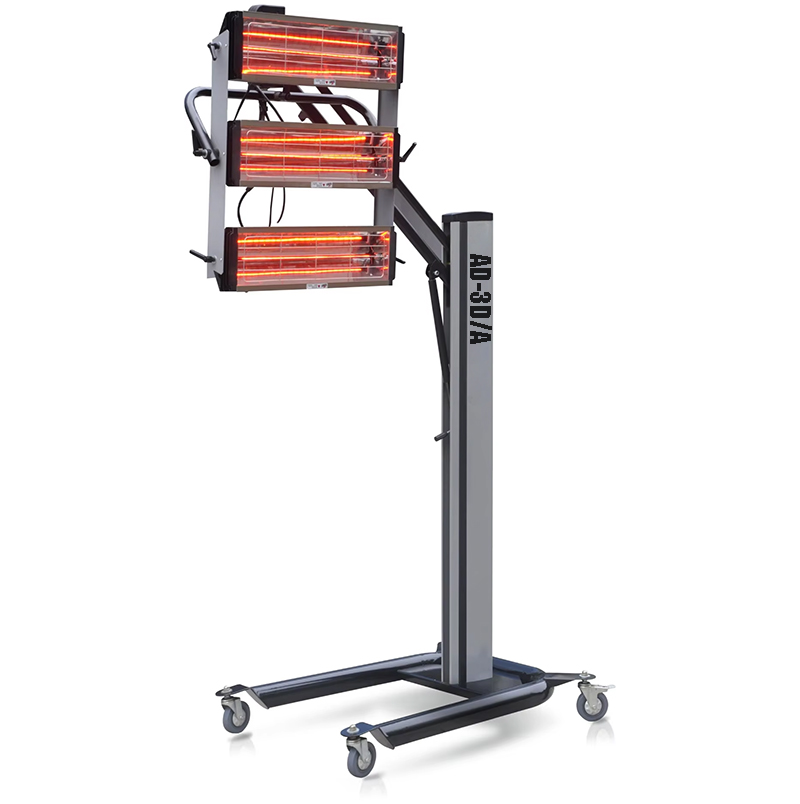

AD-3D/A |
AD-3D/C |
|
Input Voltage |
1PH220V |
1PH220V |
|
Frequency |
50/60Hz |
50/60Hz |
|
Rated Power |
3KW |
3KW |
|
Adjustable Height |
400-2500mm |
400-2500mm |
|
Preheating Time |
1-5min |
1-5min |
|
Drying Time |
1-15min |
1-15min |
|
Curing Distance |
600-800mm |
600-800mm |
|
Working Current |
5-15A |
5-15A |
|
Curing Temperature |
60-70℃ |
60-70°C |
|
Curing Area |
800x1000mm |
800x1000mm |
|
Dimensions(lxwxh) |
700x1200x2300mm |
700x1200x2300mm |
|
Weight |
42KG |
42KG |
|
Adjust current |
0-99 |
0-99 |
|
Testing distance |
15-800mm |
15-800mm |
|
Testing temperature |
25-80℃ |
25-80℃ |
Features
1.Made from aluminum alloy, 304 stainless steel mirror reflector and other special material;

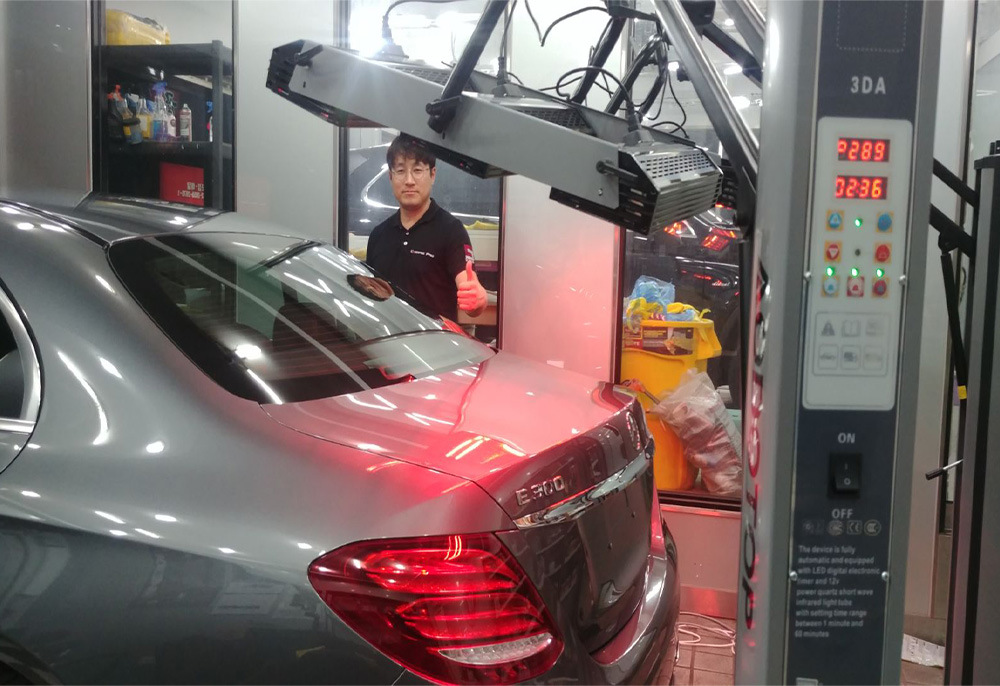

2.Applying to drying the painting work for spot damage from the car body, avoiding
3.Curing area is 800*1000mm, suitable for drying the spot damage under one area of

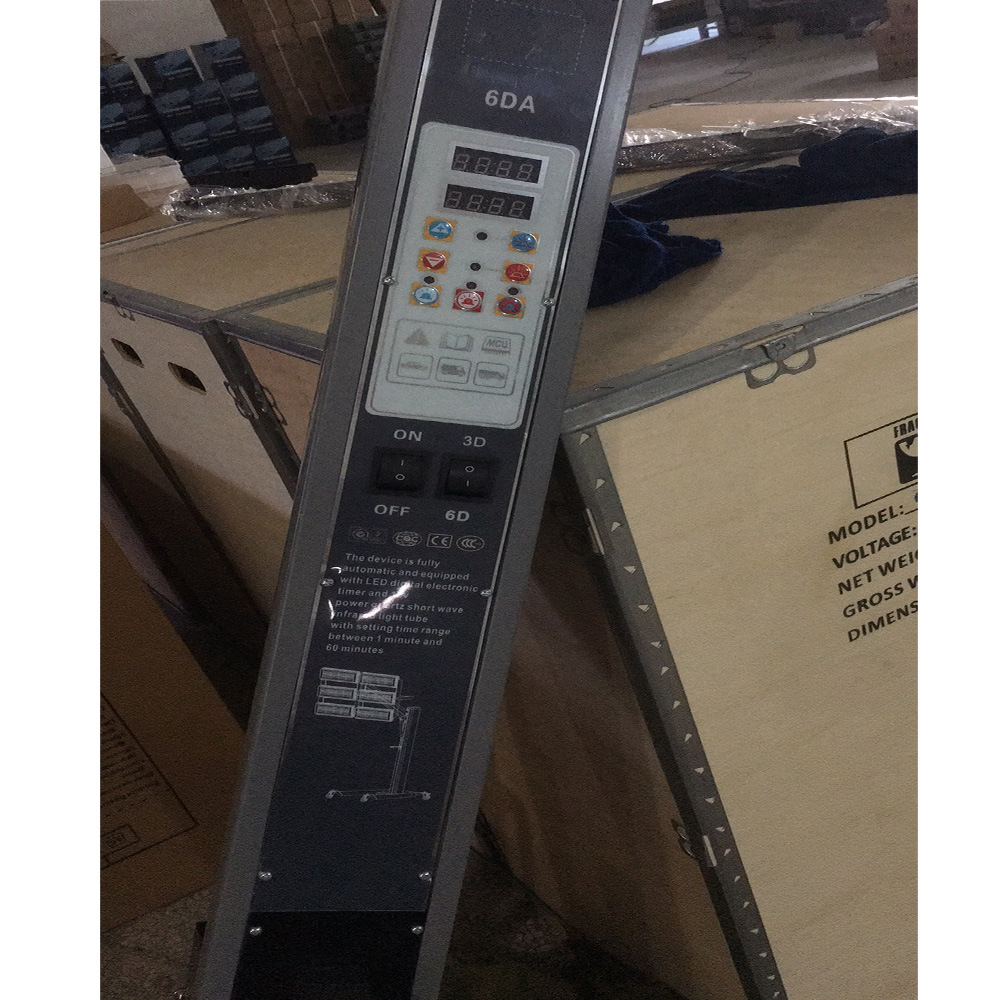

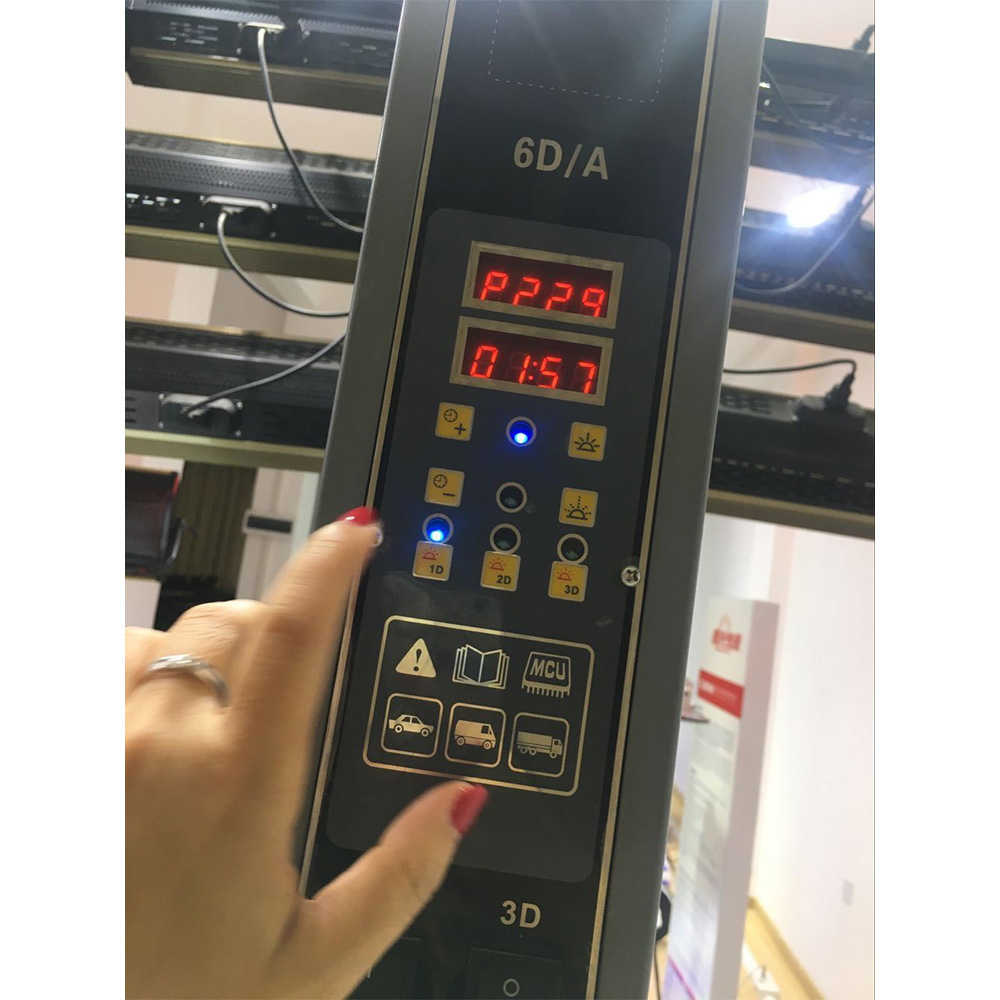

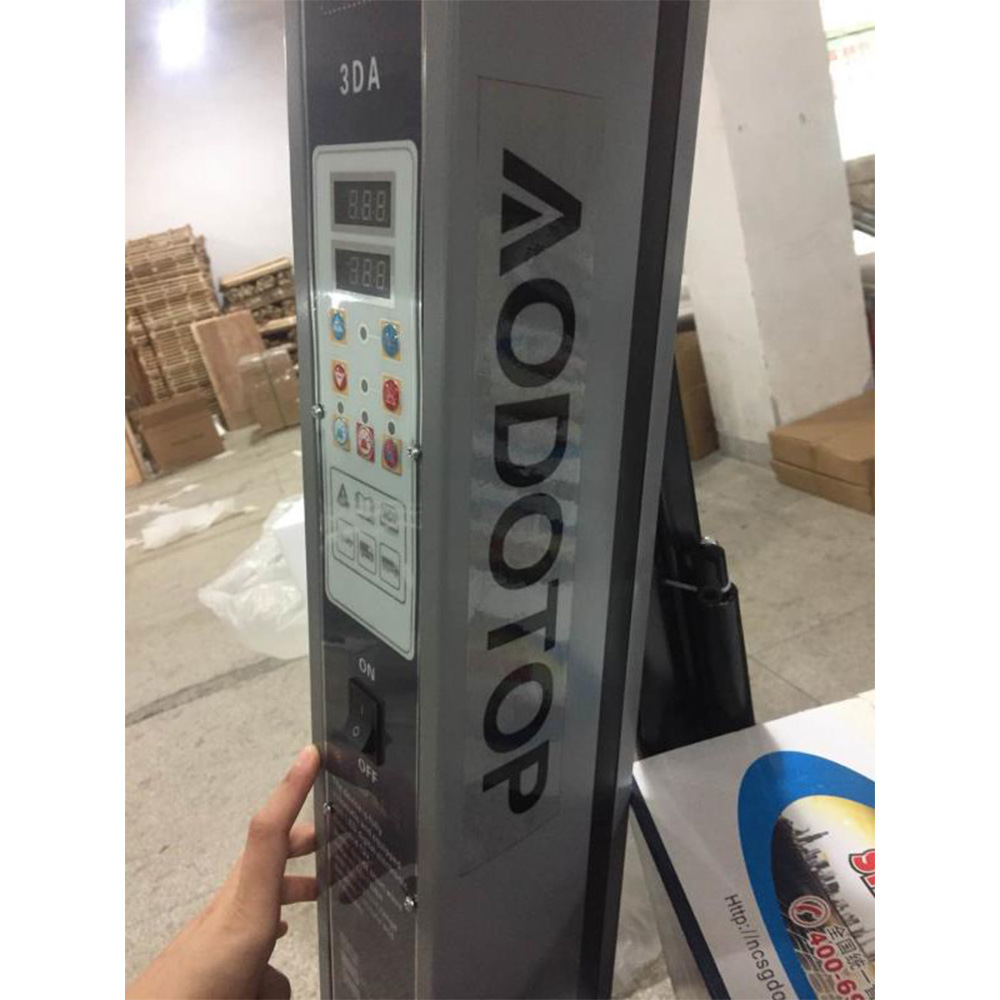

4.Unique electronic timing function, with an advanced digital control and display for

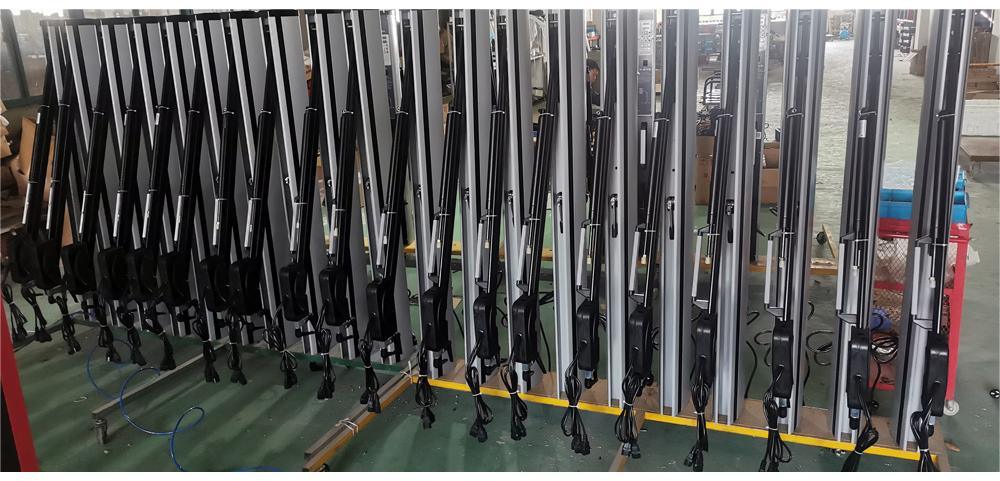

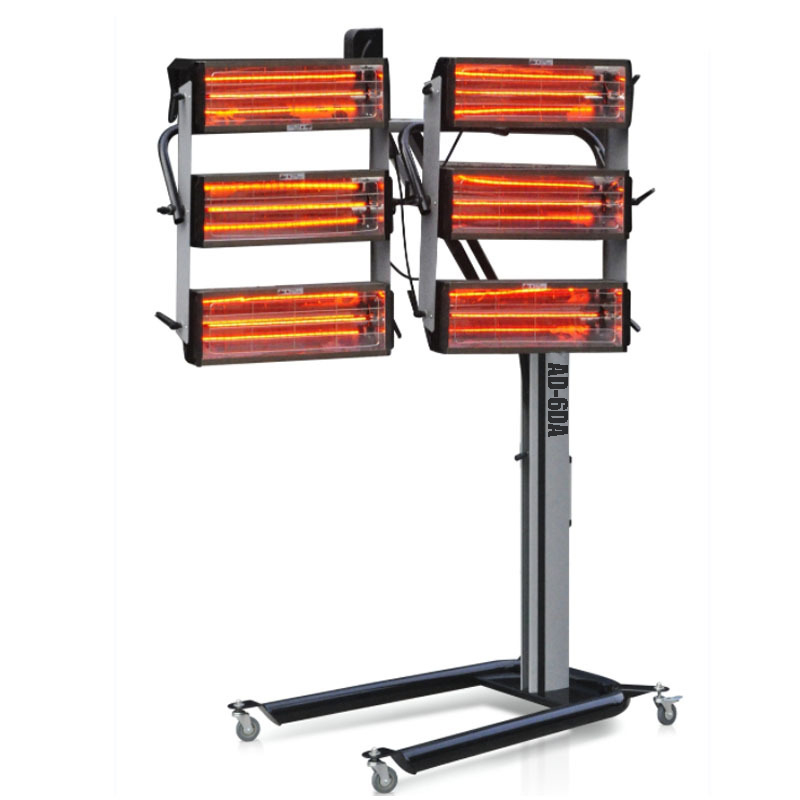

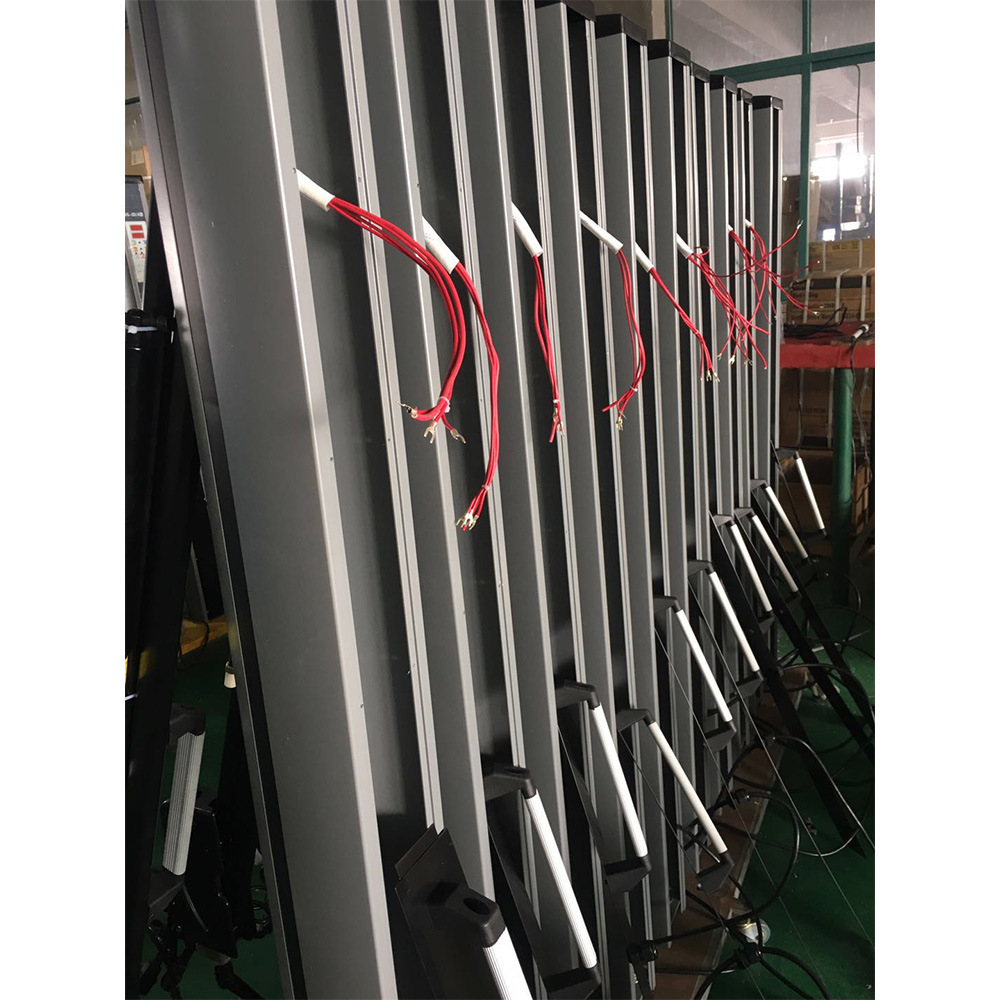

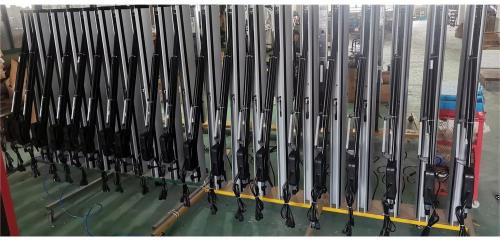

Product details
Curing time reference
|
Process Project |
Set Time |
|
Primer Antirust Coating |
10min |
|
Putty |
10-15min |
|
Undercoat |
5min |
|
Intermediate Coat |
5-10min |
|
Finishing Coat |
5-10min |
|
Varnish |
10-15min |
