Product Description
|
Item |
Accuracy |
Range |
|
Display accuracy |
0.01mm/0.01° |
/ |
|
SAI |
±0.02° |
±20° |
|
CASTER |
±0.05° |
±20° |
|
CAMBER |
±0.02° |
±10° |
|
TOE |
±0.02° |
±20° |
|
THRUST ANGLE |
±0.02° |
±5° |
|
SETBACK |
±0.02° |
±5° |
|
TOTAL TOE |
±0.02° |
±40° |
|
MAX TURN ANGLE |
±0.08° |
±50° |
|
AXLE DISTANCE |
±2mm |
4000mm |

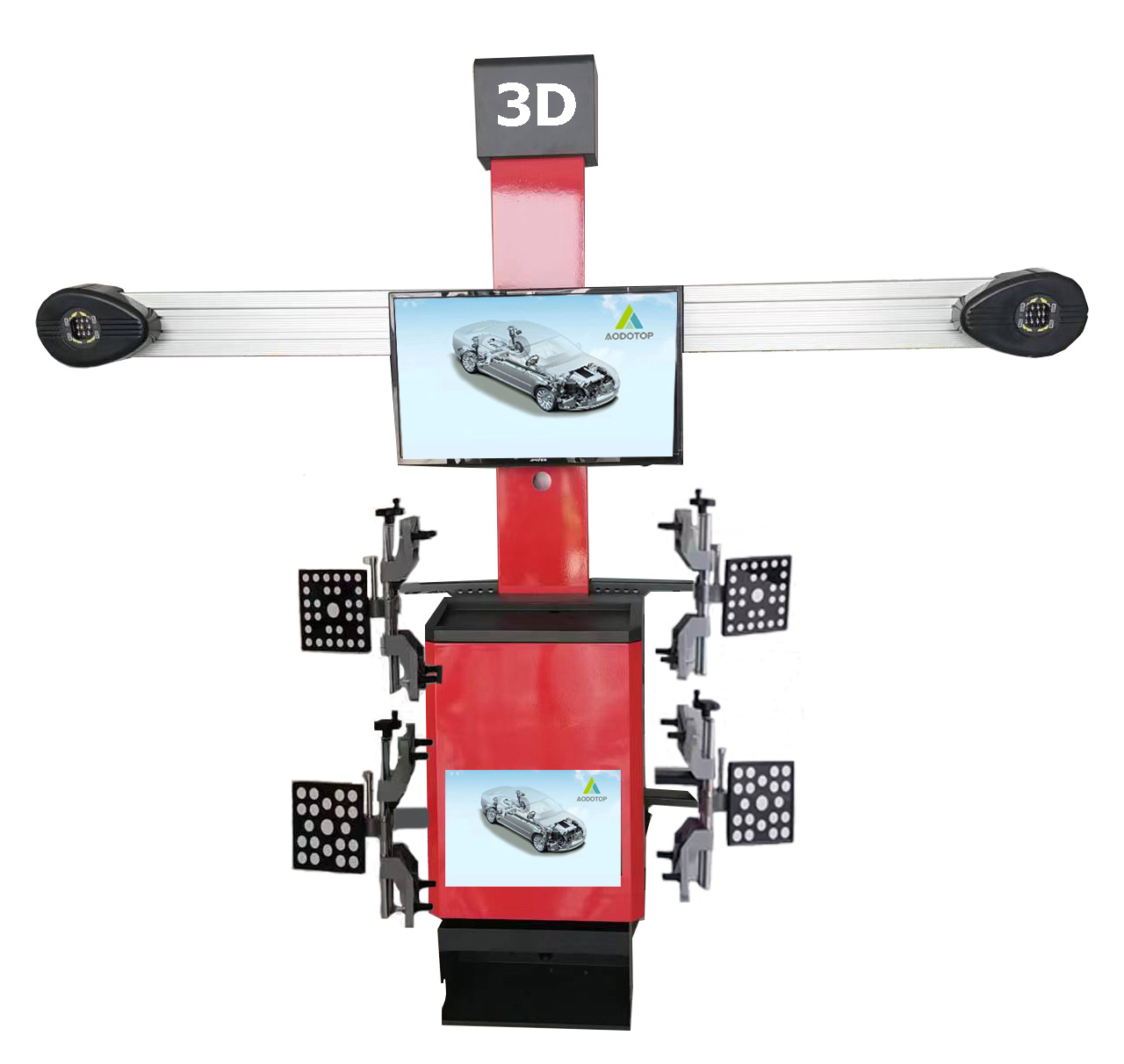

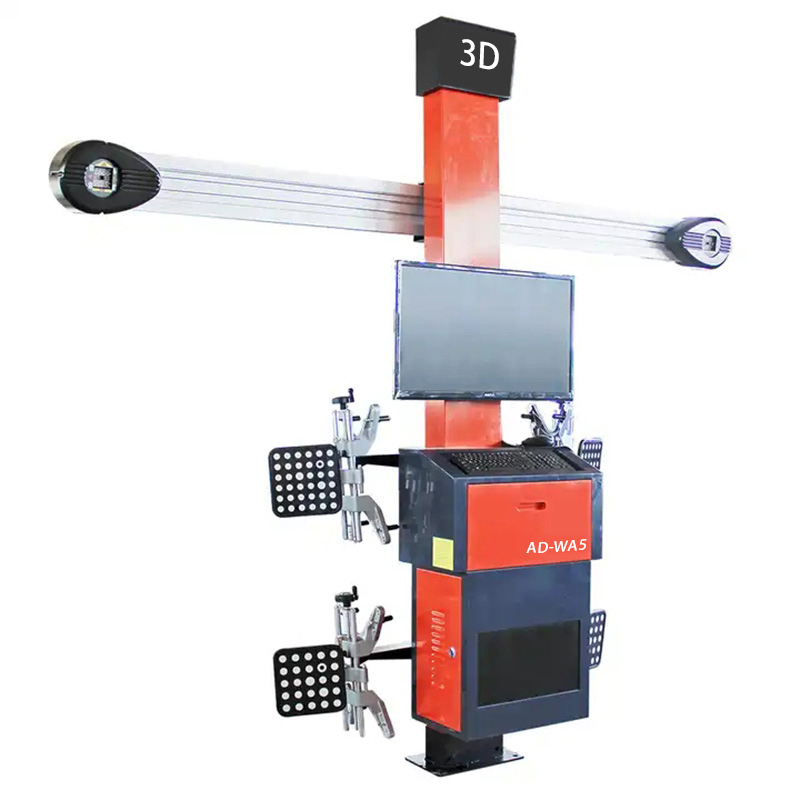

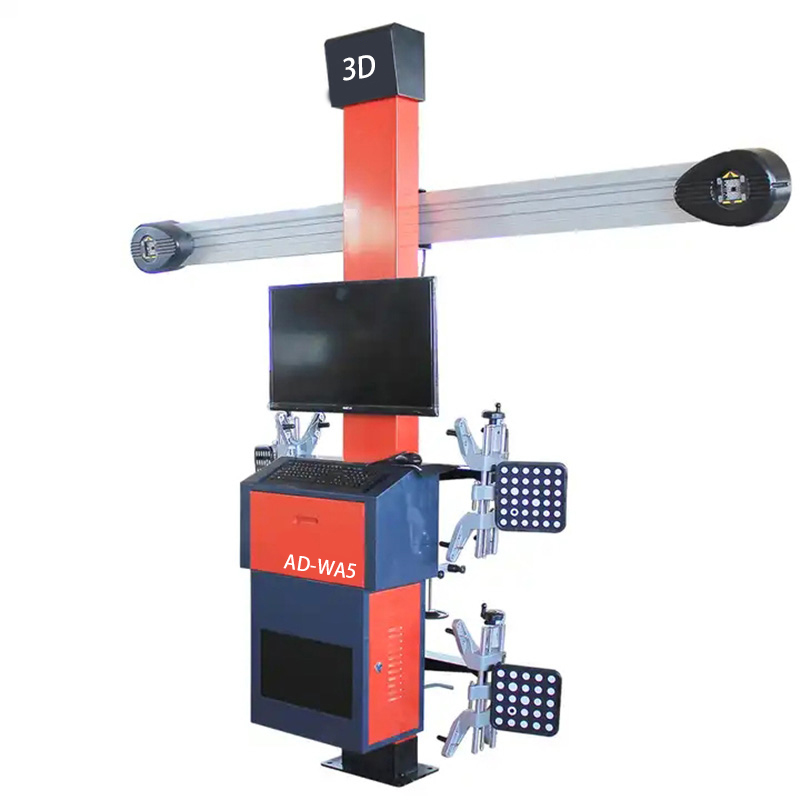

Characteristics of 3D Wheel Alignment
◆3D cameras alignment—Based on the car and not influenced by the platform
◆Measurement system—equipped with double digital cameras and four target disk,
supplying revolutionary measurement mode
◆Target disk—There is no electronic components and connection lines on the target disk, so the wheel
alignment will not has a component failure problem.
◆Equipment Calibration - once calibration before delivery, workable immediately after installation, no
need for periodic calibration
◆Measurement progress—no need to compensate for steel ring , the precise eccentric compensation
will be just once pulling or pushing the car back and forth
◆Software system——Easy to operate, complete conventional basic parameters including two minutes,
significantly faster than conventional aligners
◆Daily Maintenance—Easily maintenance and download freely upgrade for the model data
Standard Configuration
Compact cabinet, Economic standard installation column, Dell computer, Target plate, Pylon bracket, Brake fixer,
Steering wheel fixer, Wedge block, Turntable, Transition block of turntable and so on.
Manufacturing Technique
Software function
Basic function: camber, caster, Kingpin Inclination, toe angle, set back, Thrust Angle and so on Extended function:
axis deviation, wheel deviation, mono wheel, auto lift measurement function, steering wheel square, locating
platform levelness detection.
Product Paramenters
|
Measurement project |
Accuracy |
Measurement range |
|
Display accuracy |
1´/1mm |
|
|
Camber |
±2´ |
±10° |
|
Caster |
±6´ |
±20° |
|
Kingpin Inclination |
±6´ |
±20° |
|
Toe-in & Toe-out |
±2´ |
±20° |
|
Set back |
±2´ |
±5° |
|
Thrust angle |
±2´ |
±5° |
|
Wheel Deviation |
±2mm |
4000mm |
|
Axis Deviation |
±2mm |
4000mm |
