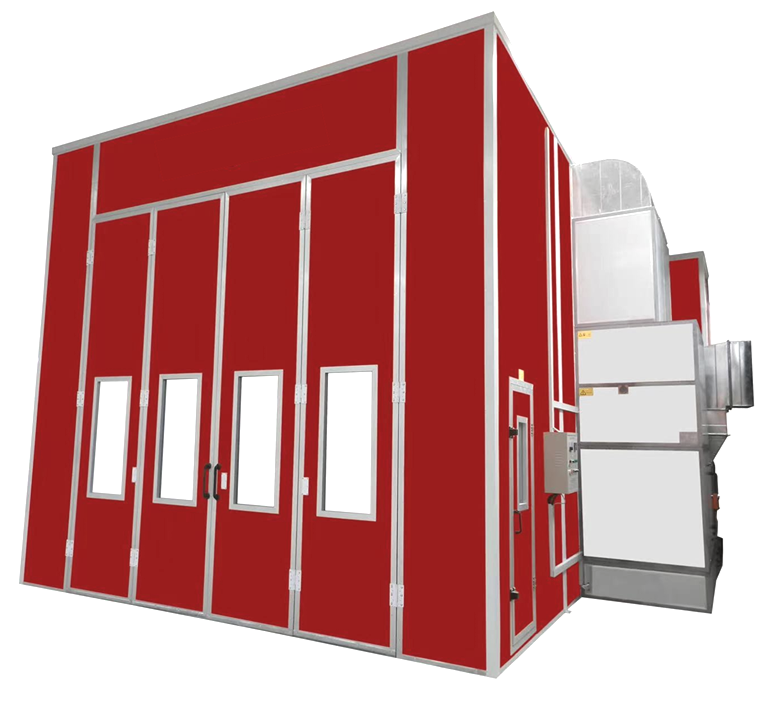

Product Name |
Customized Spray Booth, Truck Spray Booth, Spray Booth Truck, Industrial Spray Booth |
|
Booth Room Size |
Inner diameter: 20000×8000×6000mm (L×W×H) |
|
Outer diameter: 20100×8150×6450mm (L×W×H) |
|
|
Wall Board |
Booth wall panel thickness 75mm, inner filled with EPS (optional rock wool inner material fireproof panel), covered with δ=0.5mm X |
|
2 color steel plate. Board bulk with strong hardness to make sure the room shape. |
|
|
Roof Plate |
Bending and buckling galvanized sheet. |
|
Body Frame |
The frame of the booth body is welded with a thickness of 2.0mm and 40*80mm galvanized square pipe, which is sturdy and durable. |
|
Basement |
No basement. Air downdraft with floor pit or side draft exhaust. |
|

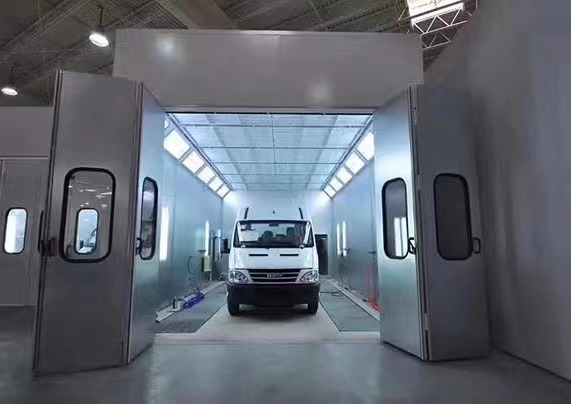

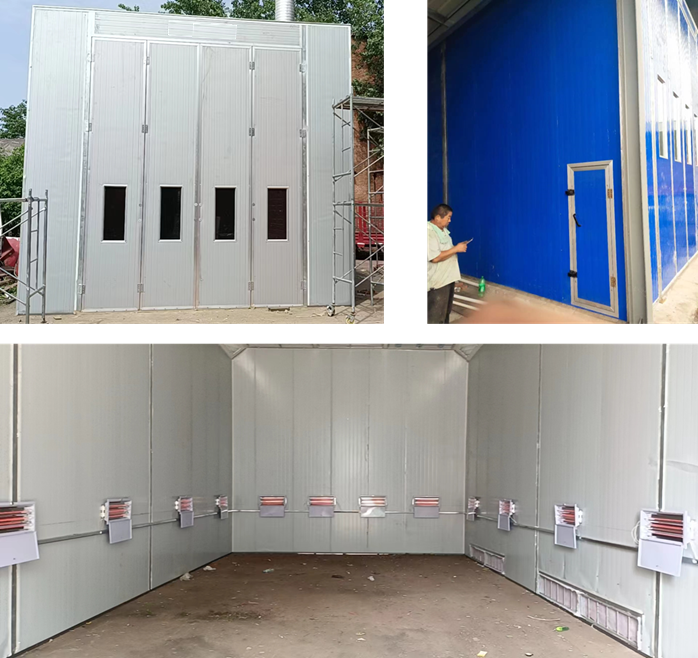

Main Door |
Main door quantity 2 units. Front and back with pass through doors, each side main door size: 4000×4000mm(W×H), made by 6 pieces |
|
metal doors, which is made of steel plate with protective film and built-in frame, beautiful and durable, square self-locking |
|
|
aluminum alloy observation window, special luxury bolt for sheet metal door, square tube Guide column, aluminum alloy hinge. |
|
|
Seivice door 2 units. |
|
|

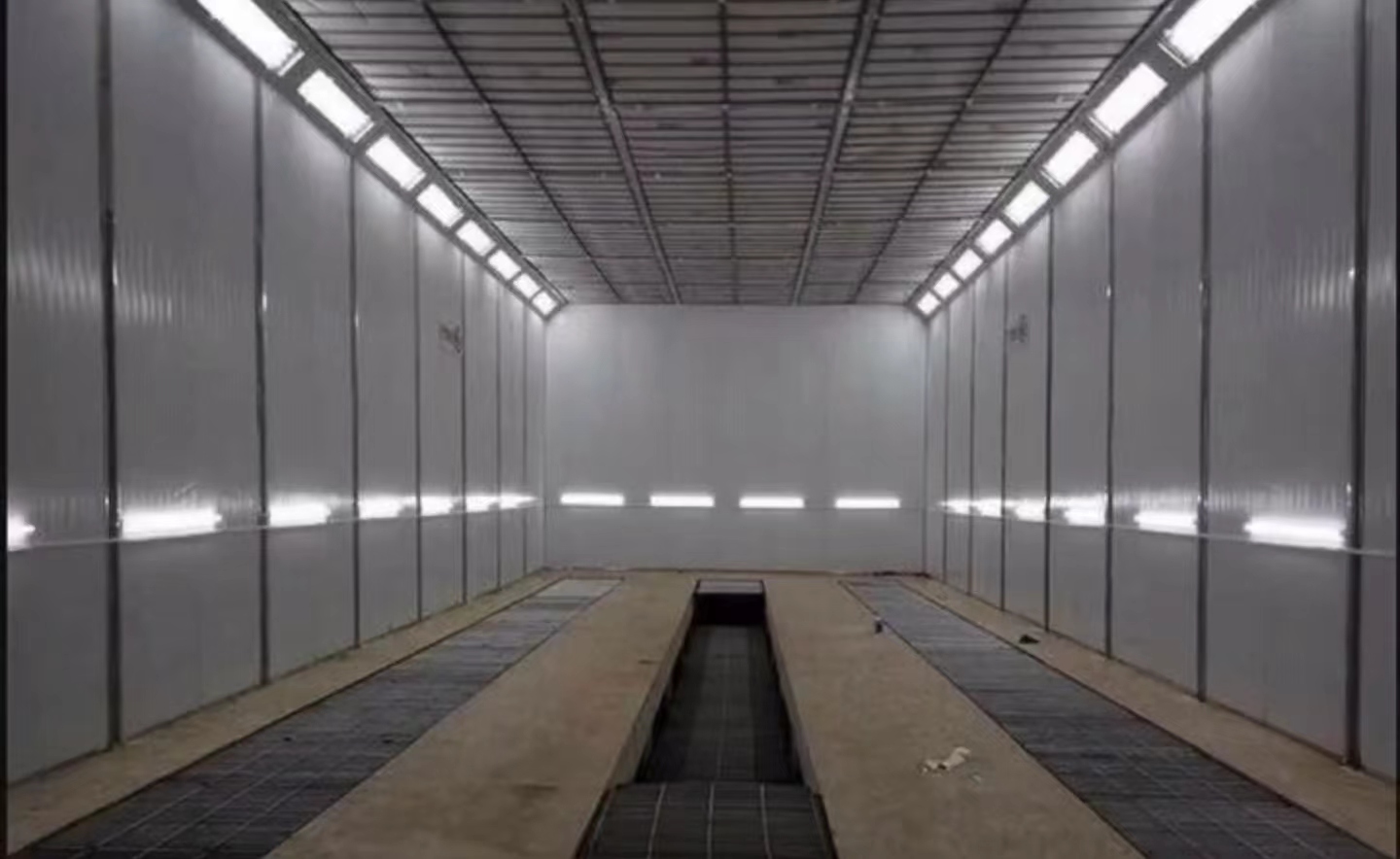

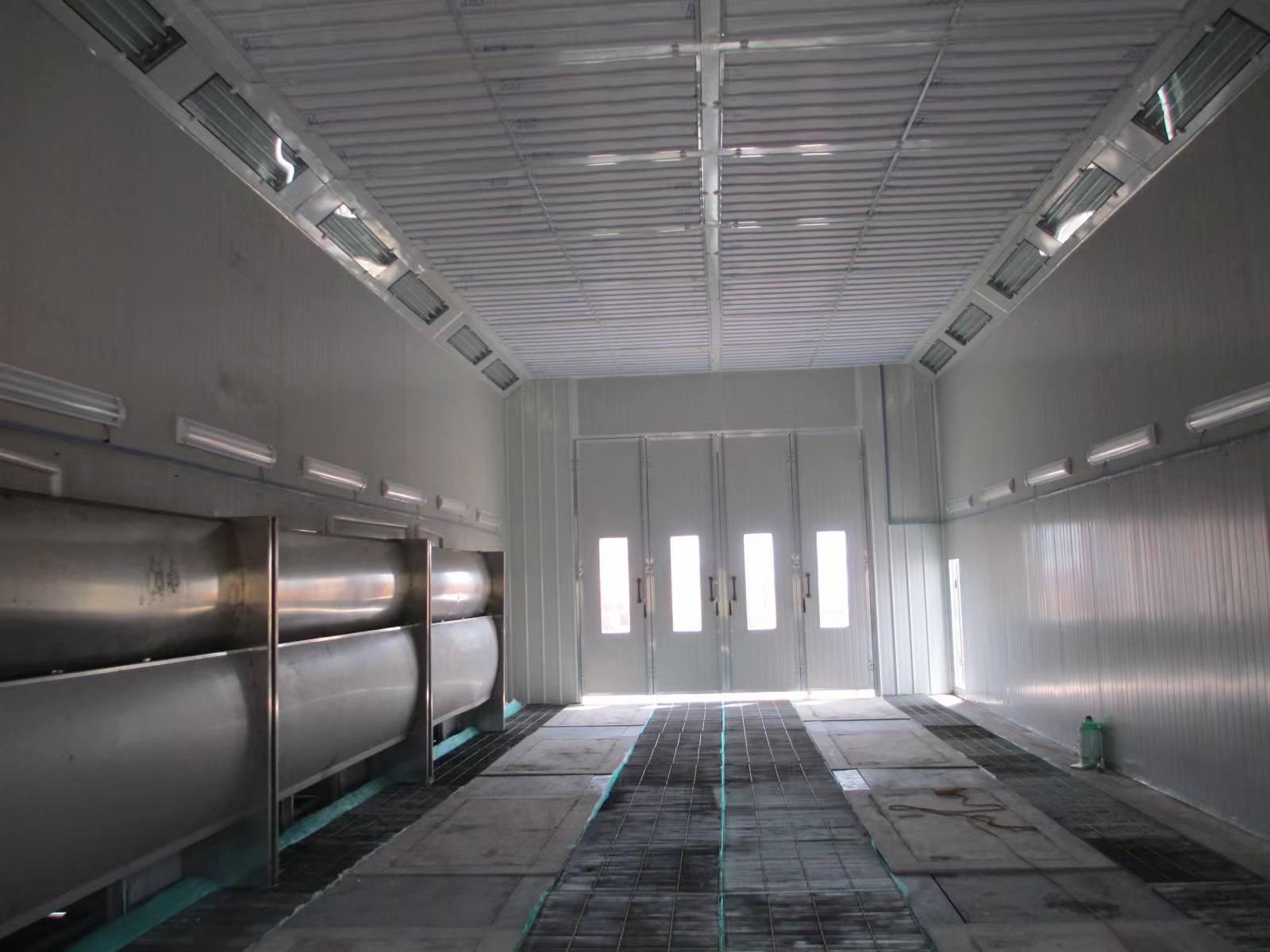

Lighting System |
Inclined ceiling light box, galvanized sheet bending and welding, surface spray treatment, concealed ram bolts. |
|
The outer cover is sprayed glass cover with transparent glass. |
|
|
Ceiling lighting box 24 units, lamp quantity 24*3=72 pcs. |
|
|
LED Lamp power 24W each |
|
|
Equipped with LED panel side lights on both sides of the room body. |
|
|
Side lighting box 24 units, lamp quantity 24*2=48 pcs. |
|
|
LED flat waist lights are installed on both sides of the room body. |
|
|
The lighting wire adopts high temperature lighting wire. |
|
|
Booth top Frames |
The upper and lower vertical and horizontal beams are welded by 40*80mm galvanized square pipes, and the thickness of 0.8mm |
|
galvanized sheet is bent and welded, and the surface of the lower beam is sprayed at high temperature; the top beam is a |
|
|
frame-type trapezoidal beam, which is fixedly connected with the columns on both sides. |
|
|
Filtration System |
The thickness of 0.8mm galvanized sheet is formed and welded, and the surface is sprayed with high temperature. The molding |
|
machine presses the card slot plus thin steel bars to weld the grid, and the surface is sprayed with high temperature. |
|
|
Primary filtration, sub-precision ceiling cotton filters, filtration efficiency ≥98%. |
|
|

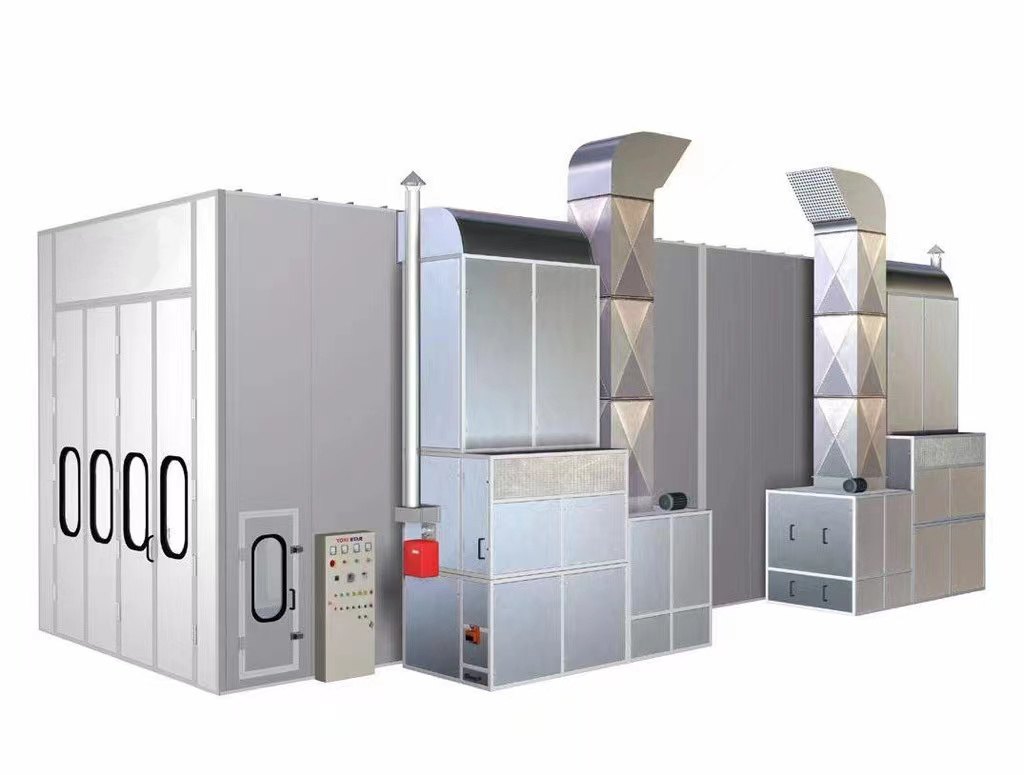

Air intake System |
Quantity 4 units. Square tube frame, double-layer insulation board welded cabin. |
|
Centrifugal motor fan 11KW x 4 units. Each blower air capacity 32000 m³/h |
|
|
Air Exhaust System |
Centrifugal motor fan 11KW x 4 units. Each blower air capacity 32000 m³/h |
|
Exhaust cabin is made of sprayed profiles and steel plates with a protective film. Double-layer sound insulation measures improve |
|
|
the corrosion resistance and rust resistance and extend the service life |
|
|
Each cabin with 3m straight pipe and 1m elbow pipe chimney. |
|
|
Heating System |
Riello G20 diesel burner, quantity 4 units equipped with each air system. |
|
304 Stainless steel heat exchangers, each unit heating productivity 200000Kal/H |
|
|
Electric Control |
PLC control, equipped with Siemens/Schneider electrical components, with leakage protection, thermal overload protection, time |
|
setting, lighting, power supply, emergency stop switch, etc. |
|
|
Booth Body Covers |
1. The frame of the house body is made of galvanized sheet with a thickness of 1.2mm, and sprayed with anti-rust treatment. |
|
2. Bending inner corner of galvanized steel sheet, thickness 1.2mm, spraying anti-rust treatment. |
|
|
3. Galvanized steel plate bending groove box guide rail, thickness 1.2mm, spraying anti-rust treatment. |
|
|
Accessories, Consumables |
Screws, half discs, hinges, latches, turn locks, sealing strips, sealants, rivets, drill bits, wax tubes, tape, wall rubber rings, |
|
cutting discs |
|
|
Power Supply |
3PH, 380V/415V/220V, 50Hz/60Hz |
|
Booth Main Door Color Optional |
White grey, Blue, Red, Orange, Green |
|
Note |
1.This configuration does not include cables and wiring other than the main electronic control system of the equipment. |
|
2.The two parties will further discuss other unfinished matters. |
