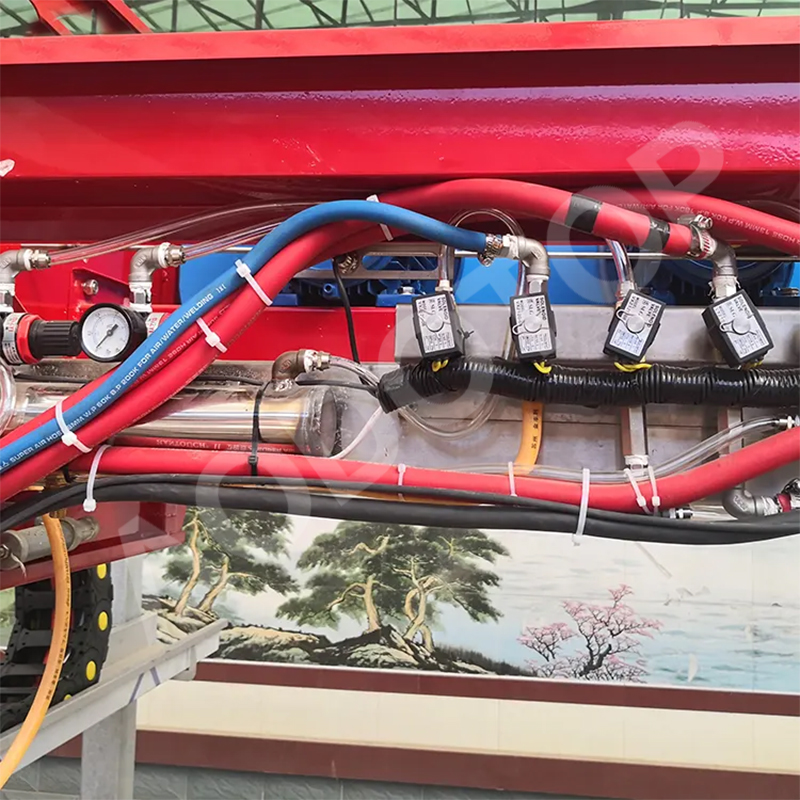

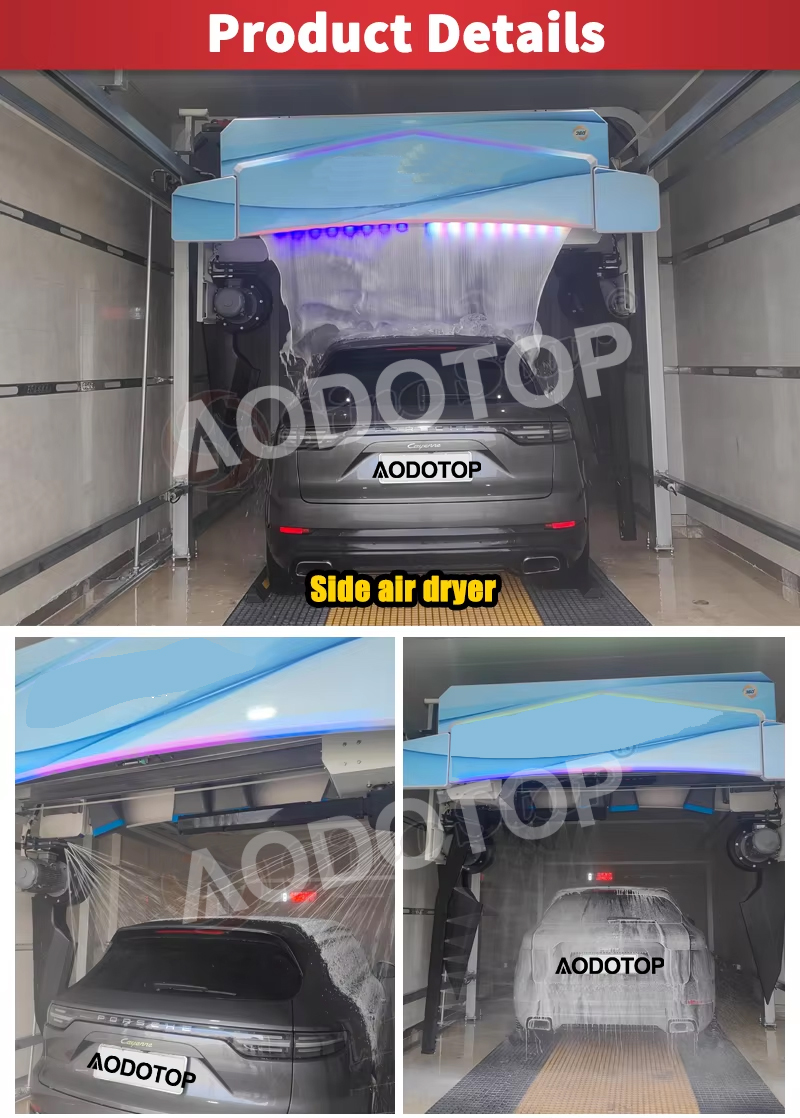

Product details
Project show
Technical data

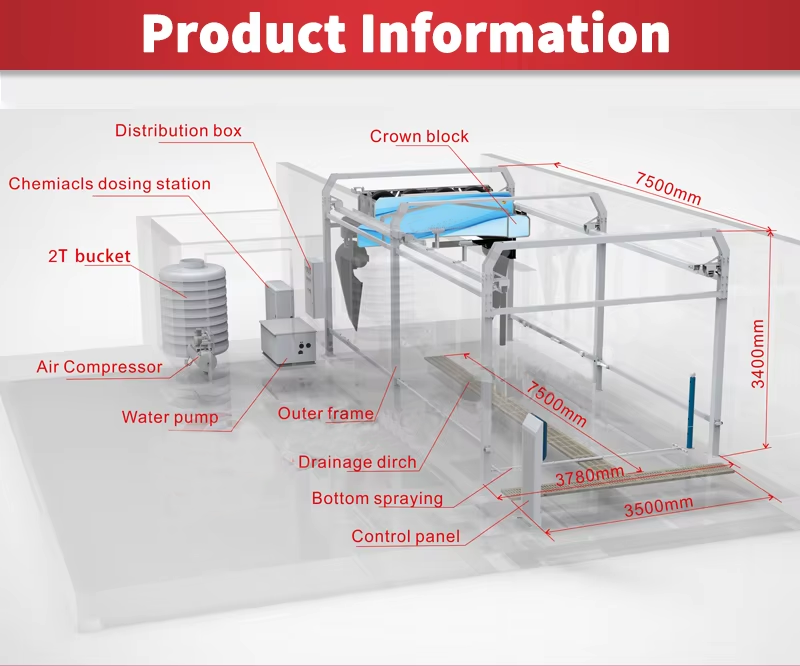

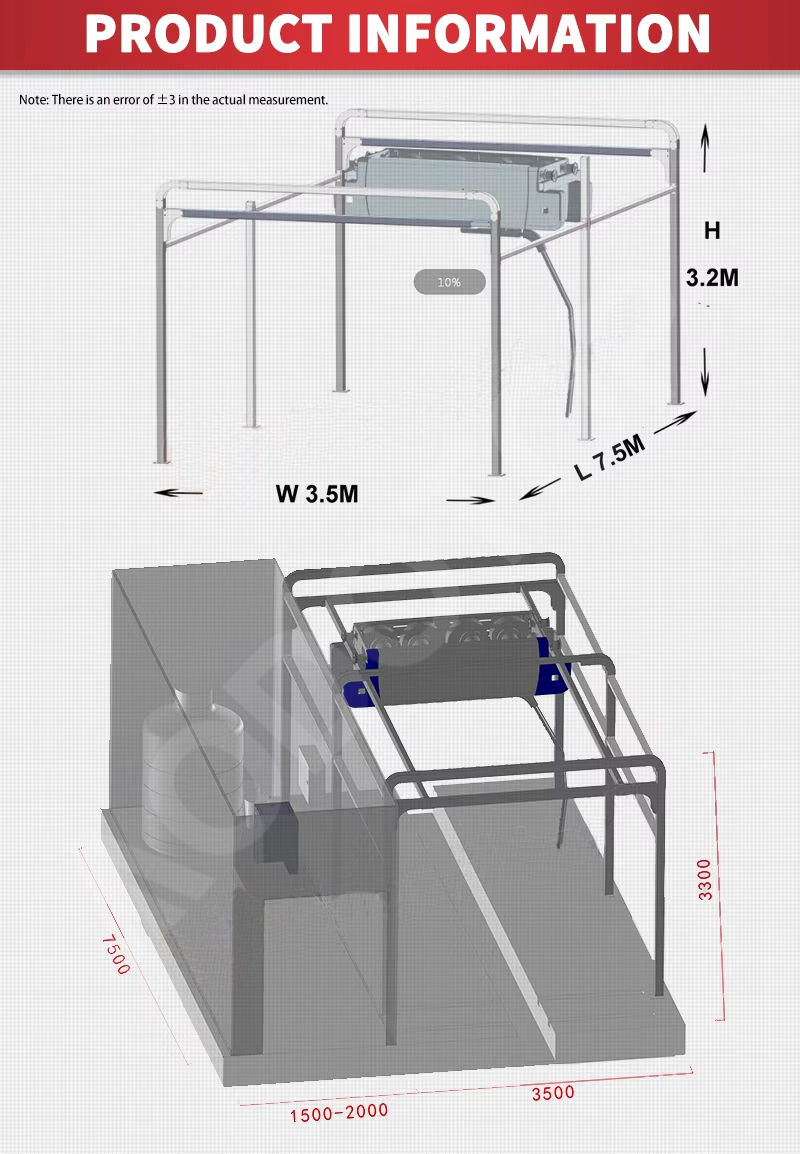

| Size | Standard Machine Installation Size | L*W*H=7500*3500*3200mm (24.6ft *11.48ft *10.5ft) |
| Max. Car Size | L*W*H=5600*2100*2080mm (18.37ft *6.89ft *6.82ft) | |
| Consumption per car | Shampoo Consumption | Approx. 40ml/car |
| Water Wax Consumption | Approx. 50ml/car | |
| Water Consumption | Approx. 120L/car | |
| Electricity Consumption | Approx. 0.75KW·H/car | |
| Time Consumption | 4.5min/car, 8 hours 100 cars | |
| Specifications | Power Supply Requirements | AC380V/50Hz/3Ph/ 20KW, 16smm copper cable |
| Air Switch | 100A air switch | |

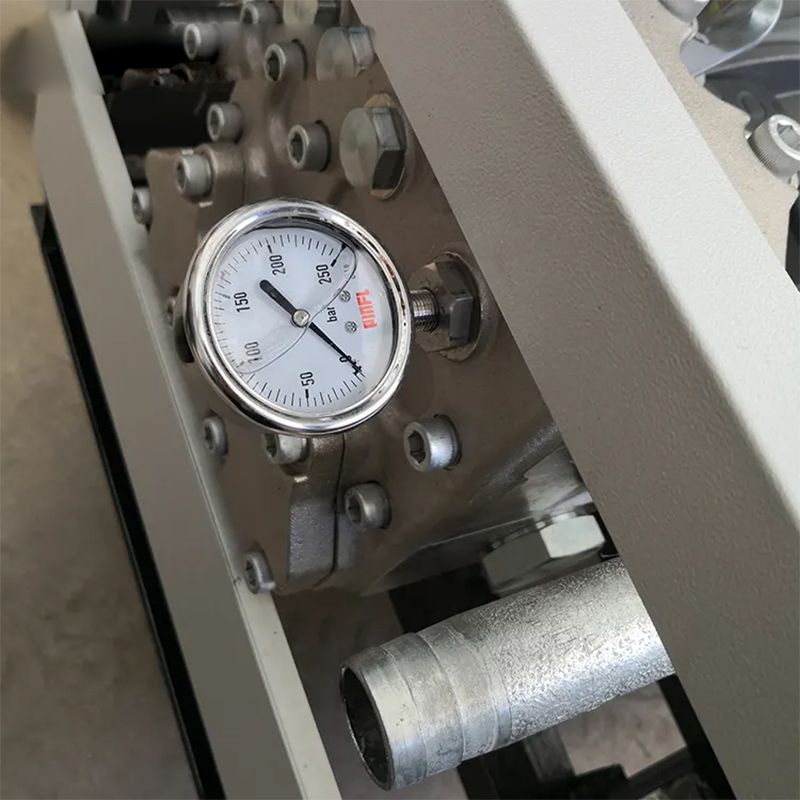

| Water Pump Motor Power | Germany PINF Pump 15KW/100Bar working pressure, Max. 120Bar | |
| Remote Control | Remote Control | |

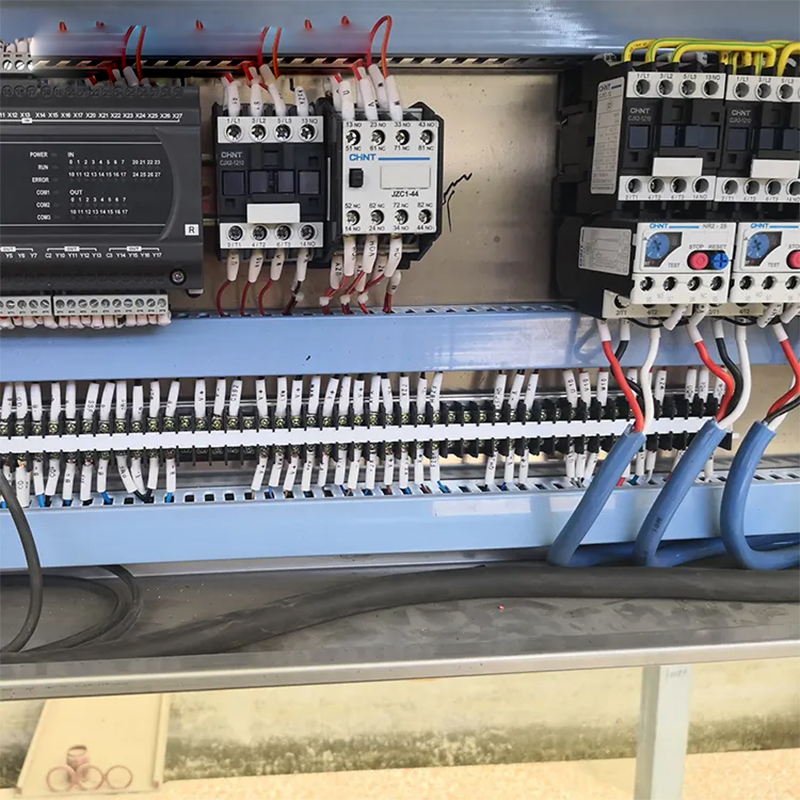

| Central Processing Unit PLC | Industrial intellient digital control system | |
| Drive System | Variable frequency speed control + digital driver | |
| Detection System | Intelligent three-dimensional detection system | |
| Sensing System | Ultrasound+ Absolute value of the digital encoder, 1 sensors | |
| Packing details | Shipment Weight / Volume | 2.1Ton / 7.5CBM / 6 Cartons /by 20GP LCL / 2Units in 20GP |
| Carton A | 0..915*1..41*1..15m = 1..439m³ 462kg | |
| Carton B | 0.76*1.15*0.97m = 0.82m³ 172.5kg | |
| Carton C | 1.165*1.16*2.86m = 3.87m³ 776.5kg | |
| Carton D | 0.41*0.56*3.21m = 0.74m³ 441kg | |
| Carton E | 3.08*0.305*0.12m = 0.11m³ 36kg | |
| Carton F | 6*0.4*0.2m = 0.48m³ 77kg |
| Configuration | Standard |
| Customize power ( >415V or change to 60HZ) | Optional |
| Built in 4Pcs * 4KW / 5.5KW Air dry | Optional |
| Chassis wash function | √ |
| 360-degree high pressure water wash | √ |
| Shampoo function | √ |
| Wax rain | √ |
| Self-guided parking system | √ |
| Vehicle length detection | √ |
| Vehicle width detection | √ |
| Automatically adjust | √ |
| Washing quantity counting function | √ |
| Fault self-test function | √ |
| Wireless remote control system | √ |
| Galvanized frame | √ |

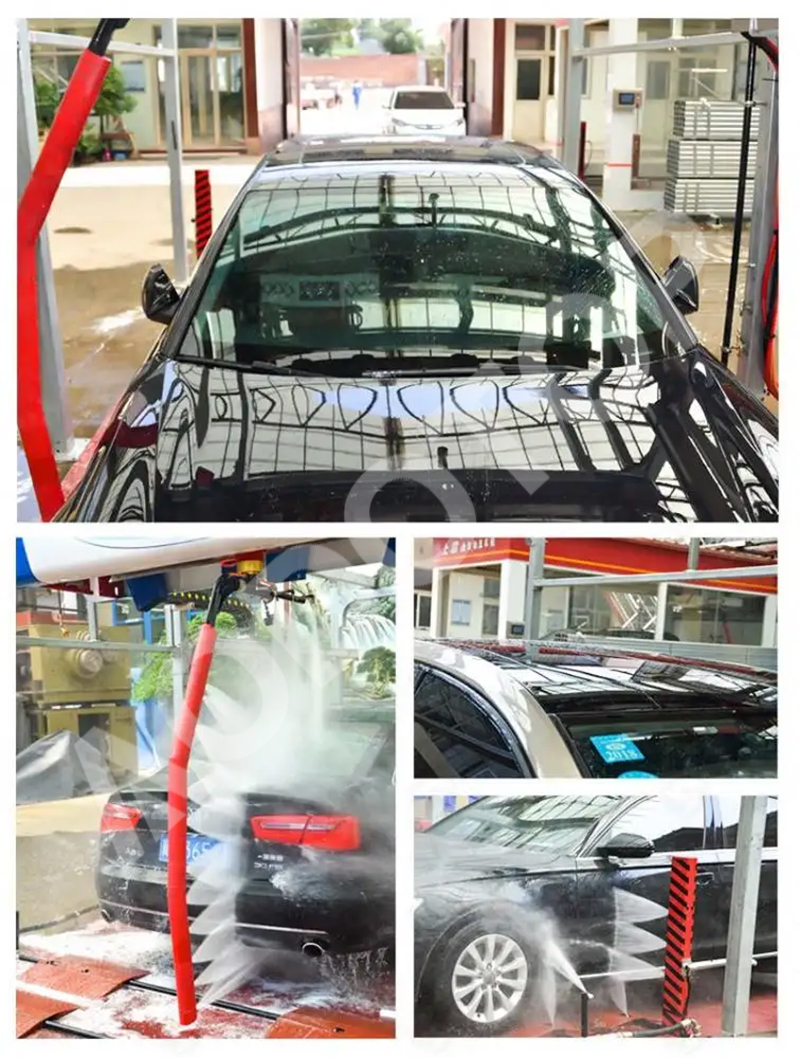

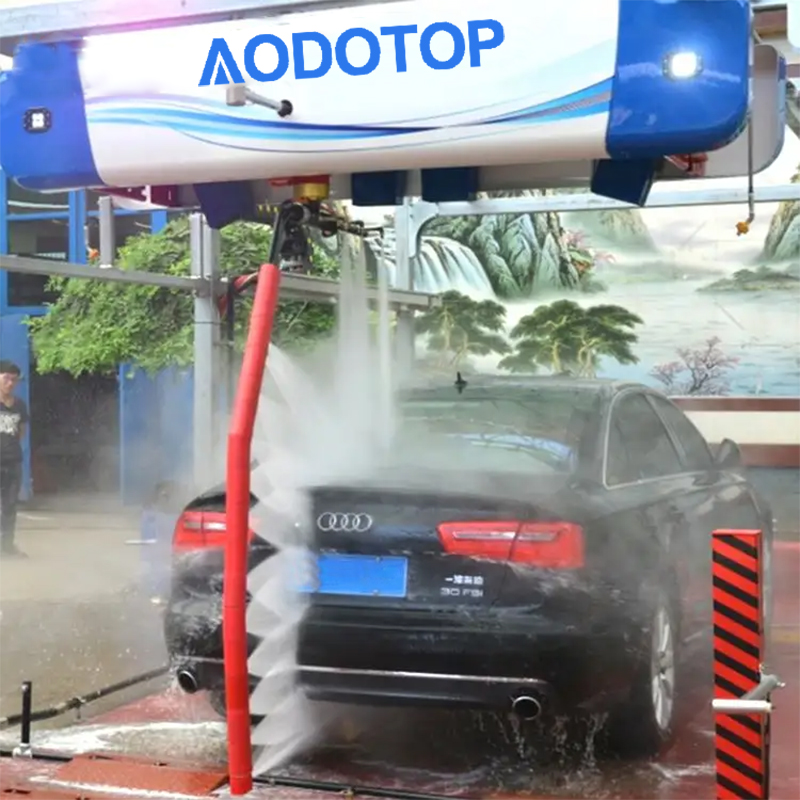

Project show
