Car Repair Shop Equipment Vehicle Frame Straightening Machine Collision Auto body Frame Machine Chassis Liner

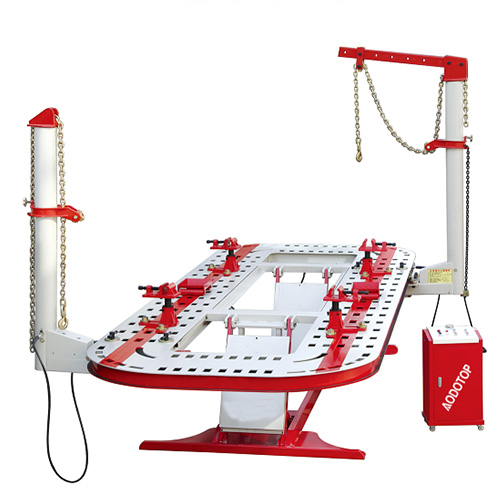

Frame Machine Chassis Liner AD-M5E Features

(1) Manganese plate entirety lifting platform, high strength reinforcement plate, lifting smoothly and operating safely.

(2) Four outputs oil system makes lifting, unlocking, dropping and locking possible through a key. Full automation,
technological innovation, humanized design, practical working philosophy. Remote control: A key in hand, manipulate freely.

(3) Double cylinder self-locking hydraulic parallel lifting platform, with tilt lifting function, convenient for car to
drive on and off. The height is adjustable among 320mm-1050mm according to the repairing need. The lifting device
with double safety of hydraulic and mechanical self-locking, more secure.

(4) Double-cylinder hydraulic vertical lifting platform makes the accidental vehicle loaded and unloaded more
convenient. Lifting frame has double security of hydraulic and mechanism. The lifting range is 320mm-1050mm in
which can be adjusted.

(5) Two pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique
wheel rotation design, so that the pulling towers move more stable, flexible.

(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately,
also the extension height and angle can be adjustable.

(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.

(8) Control box’s four oil lines are connected with oil cylinder of the basement and two oil lines of the platform
respectively,it makes the two pulling towers pull and hydraulic lock separately, no influence each other, instead of
the traditional tower bolt locking. A gas pipe is connected with the air cylinder of the safety lock teeth, ensuring
the security of the platform up and down operation.
