Model |
AD-K9 |
|

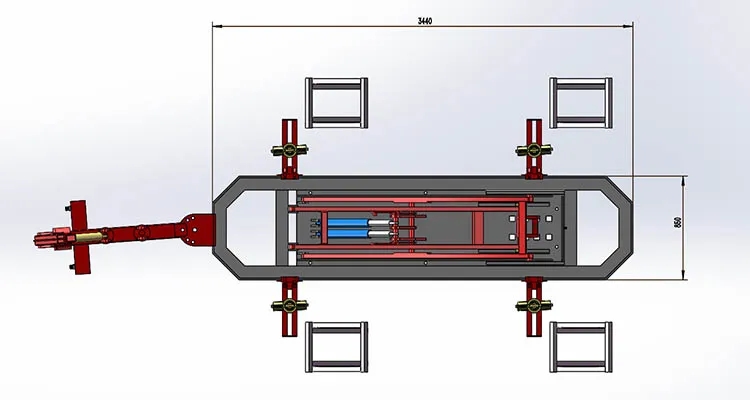

Platform Length |
11.28' (3440 mm) |
|
Platform Width |
2.78' (850 mm) |
|
Lifting Height |
0.4'~4.26 '(120 mm~1300mm) |
|
Lifting Capacity |
2500 kg |
|
Platform Thickness |
0.3' (100 mm) |
|
Pulling Capacity |
98 KN |
|
Control System |
air pump + electric pump |
|
Pulling Range |
360 degree around platform |
FEATURES

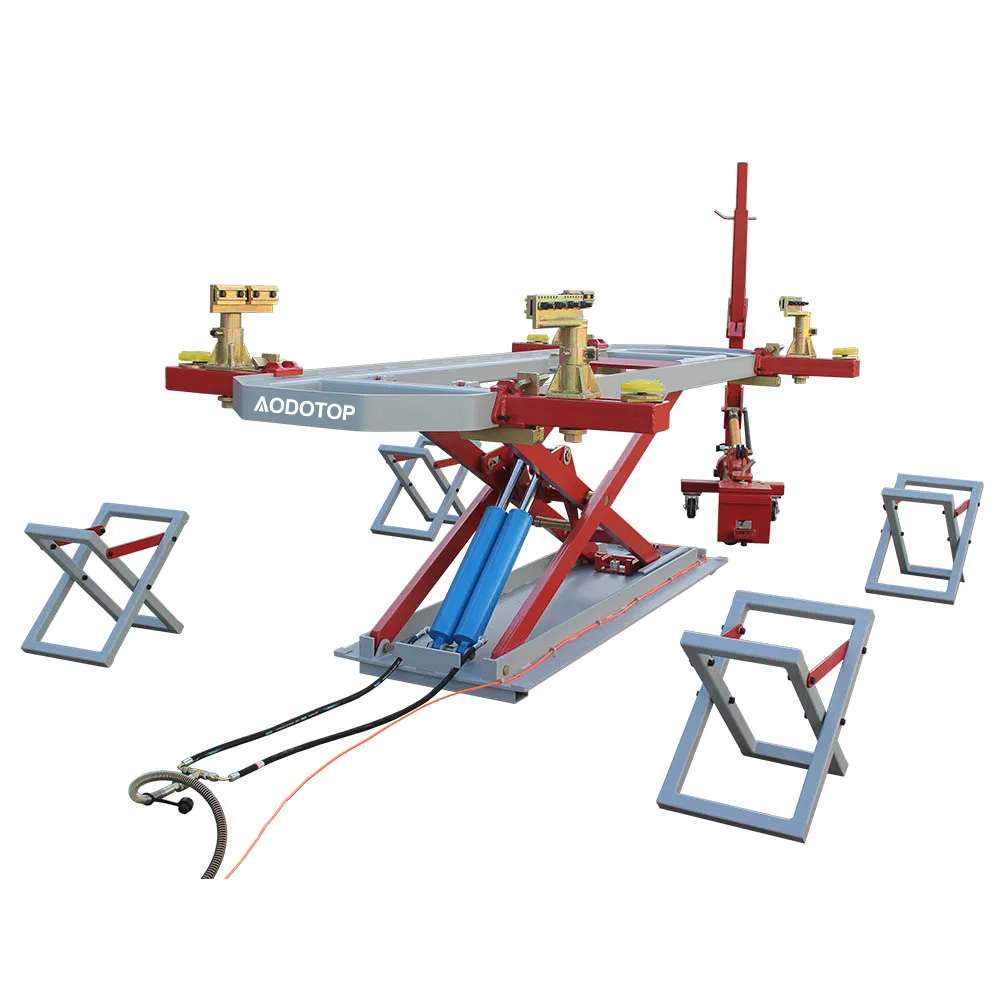

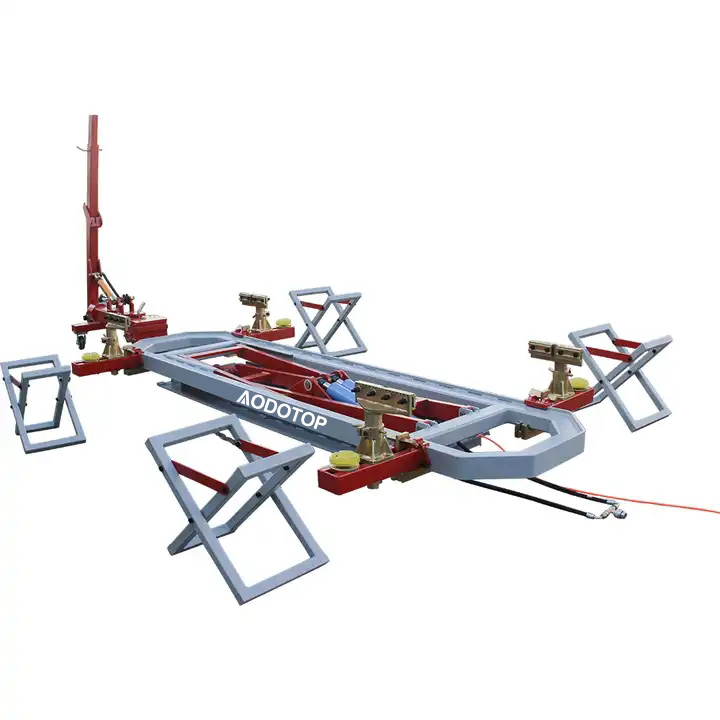

(1) European working frame machine, welded with cold high alloy rectangular tubes, full plate and high intensity. Controlled by
electronic hydraulic pump, the lifting frame is operated conveniently and quickly.
(2) The vertical lifting frame can be used as a scissor lift, lifted safely at height from 380mm to 1480mm.

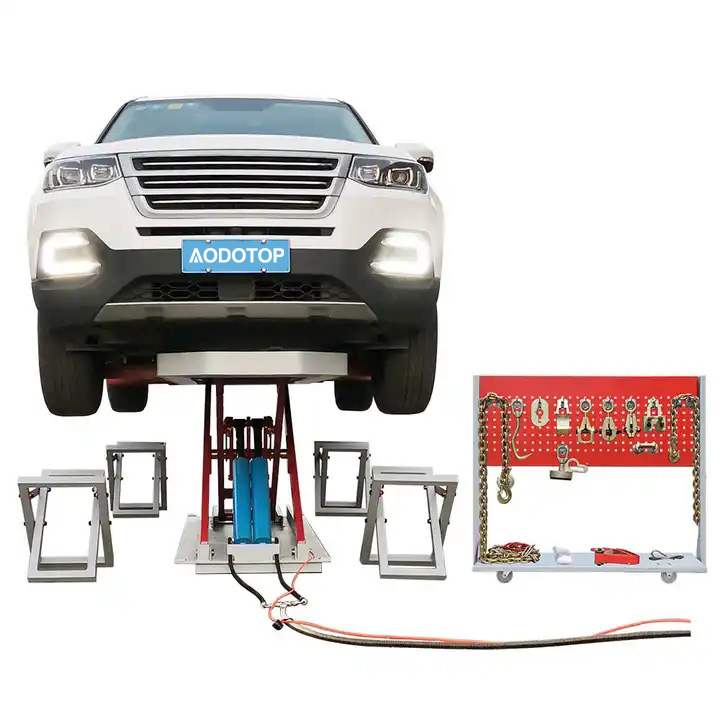

(3) The bench can do tilt down and easily drive on, and full lift the bench to comfortable position.
(4) the clamps can be unloaded after car fixed, more space for working area.
(5) The flexible moving pulling tower can be fixed firmly and stretched at varied direction. Imported hydraulic system has strong power and long life.
(6) Forged, modulated and heated by frequency, the metal sheets have high intensity and long life, any deformation correction is considered.
(7) Main clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height and angle
can be adjustable. Scientific design, firm fixing and quick operation improve working efficiency greatly.

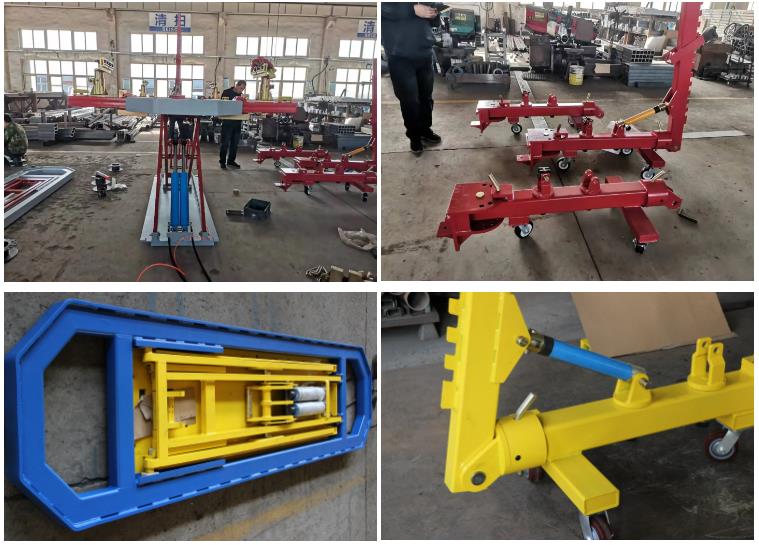

Workshop

Packing
