Platform Length |
5600mm |
|
Platform width |
2200mm |
|
Platform height |
520mm |
|
Post Max. tension |
98KN |
|
Pneumatic pressure range |
0.8Mpa |
|
Post working range |
360° full around |
|
Cylinder capacity |
10T |
|
Maximum lift capacity |
3500kgs |
|
Voltage |
3Ph/380v/415v/220v |
|
Weight |
2200kgs |
|
Packing size |
5600*2250*120 mm+2250*1450*570 mm/3.5cbm |
Features
(1) Manganese plate tilt lifting platform, high strength reinforcement plate, lifting smoothly and operating safely.
(2) The platform is board with its panel formed by the large-scale Laser cutting machine. The notch is smooth with no heat deformation.
(3) There are more holes on the platform, easier to fix the clamps, no working blind, make the bottom corrected without
eliminate the deformation and protect the scatheless parts.
(4) Hydraulic tilt lifting platform makes the accidental vehicle loaded and unloaded more convenient. Lifting frame has double security
of hydraulic and mechanism.
(5) Two pulling towers can be rotated 360 degrees along the platform which is operated more convenient. Unique wheel rotation design,
so that the pulling towers move more stable, flexible.
(6) Universal clamps are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the
and angle can be adjustable.
(7) Hydraulic system with good design has powerful driving force, long life and low failure rate.

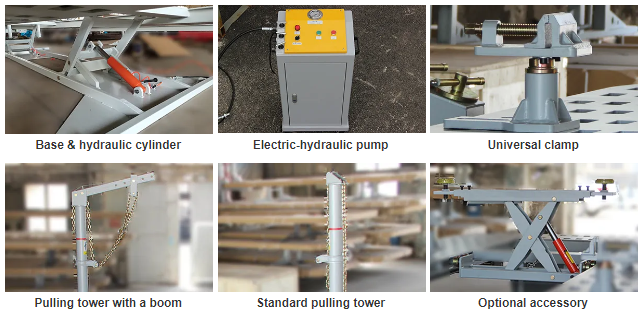

Product Details
Production
Packing
