Product introduction
T
Technical Specification
Product details
Project show
TTechnical Specification
|
Model number |
AD-TL |
|
Product name |
Wheel Alignment Pit Trench Lift |
|
Platform length |
4200/4500/5000mm |
|
Platform width |
600mm |
|
Deck thickness |
150mm-200mm |
|
Secondary |
350mm |
|
Lifting time |
37s |
|
Car lift power |
2.2KW, 220V/380V |
|
Car lift weight/volume |
400kg, 0.8CBM |
|
Car lift package |
4500/4700/5200*650*900mm |
|
Net weight |
600kg/ 700kg |
Features:
1.In ground mounted, take limited space.
2.Electric control pneumatic release, safe and reliable.
3.Hydraulic system adopts the advanced integrated valve plate oil and import seal parts.
4.The vehicles can be exited manually if the power is stopped in accident.
5.Cylinder with upper return oil, prevent oil cylinder from rusting.

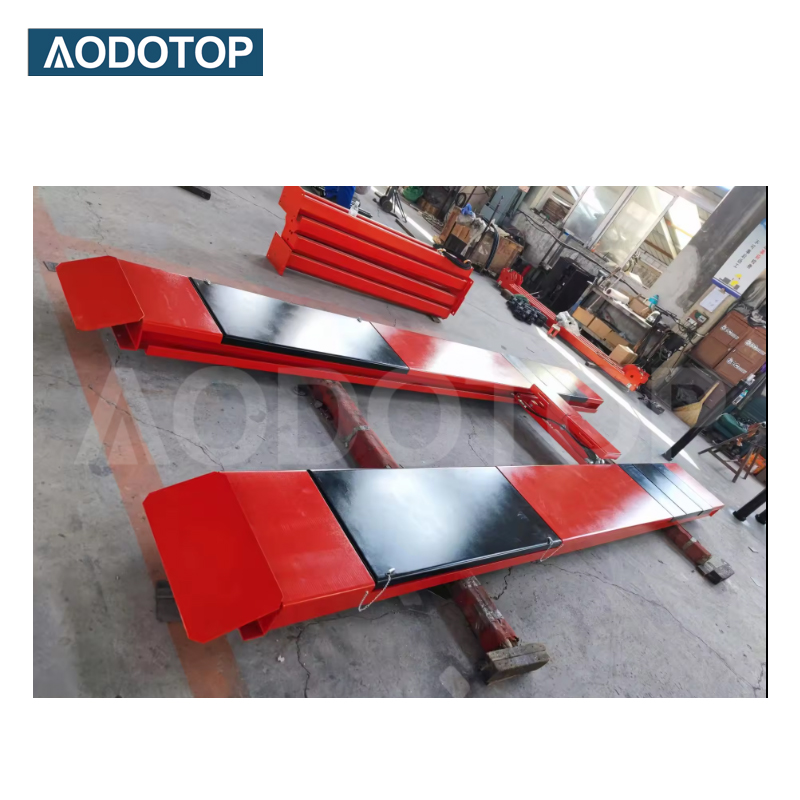

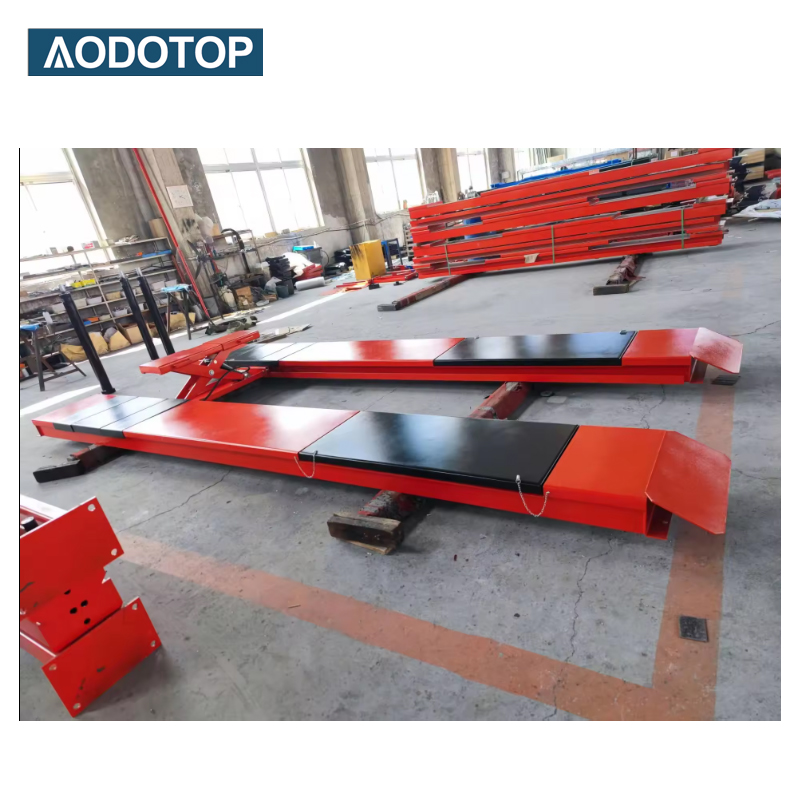

Product details

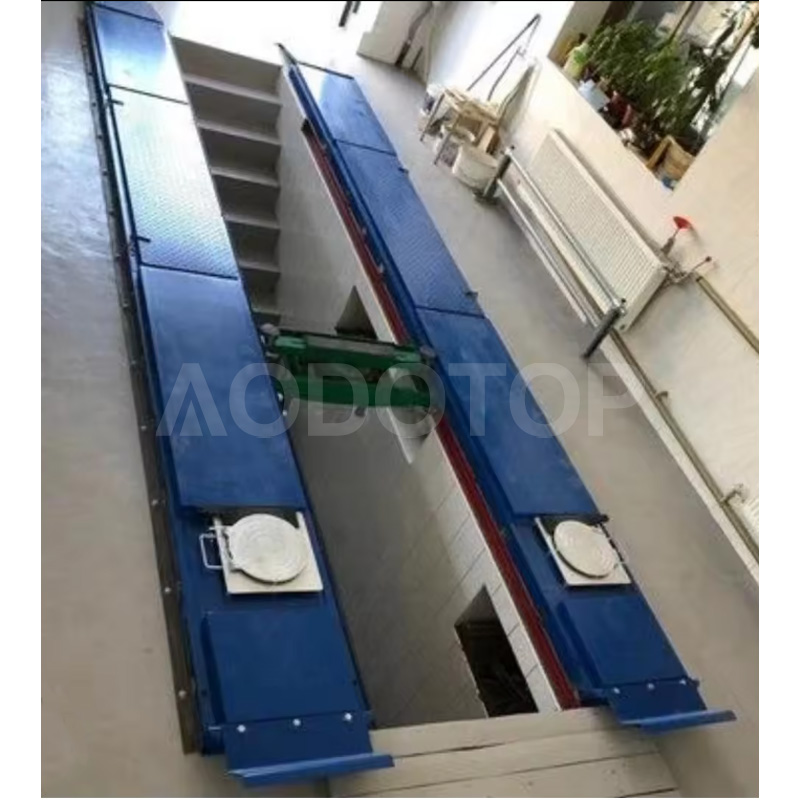

Project show
