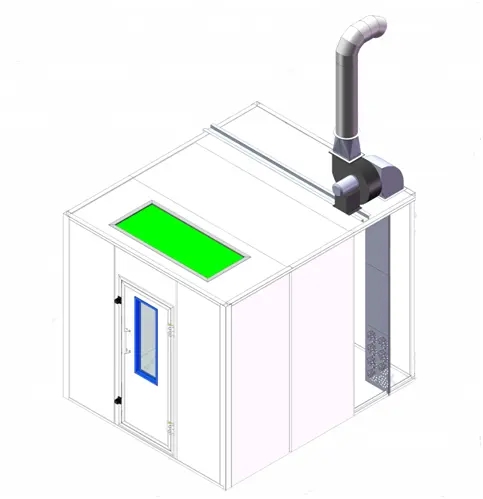

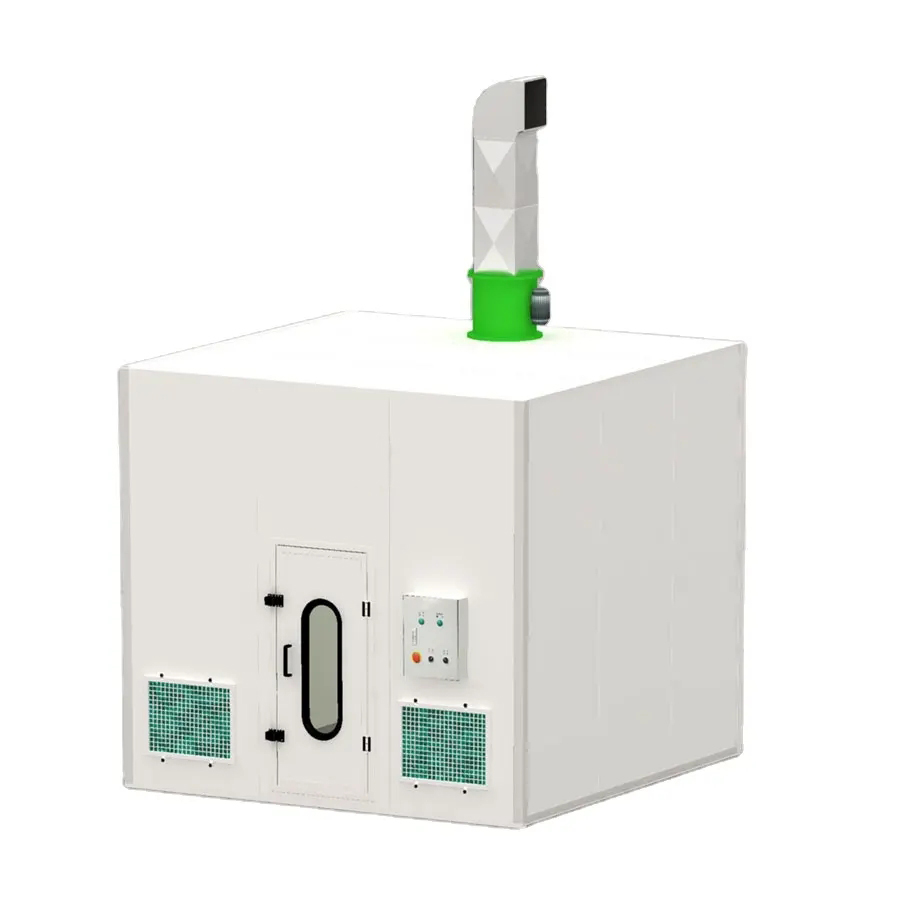

Product Description
|
Inside dimension |
3450×2330×2350 mm (L×W×H) |
|
Outside dimension |
4130×2430×3400mm (L×W×H) |
|
Door dimension |
650x1800 mm (W×H) |
|
Room body |
EPS wall panel, thickness 50mm. U steel groove structure installed on ground. |
|
Light |
Ceiling Lights: 3Units×4Pcs=12Pcs×36W, no side lights. |
|
With electronic ballasts, lighting boxes are powered coated. |
|
|
Air exhaust system |
Exhaust from the bottom of back side, air capacity: 7000m3/h. |
|
Purification system |
Pre-filter, ceiling filter, fiberglass filter. |
|
Control system |
Fan switch, lighting switch, power supply switch. |
|
Installs way |
Hooked from roof by steel cable or supported by steel column. |
|
Total power |
1.2KW (Power supply 1×220V, 50HZ) |
